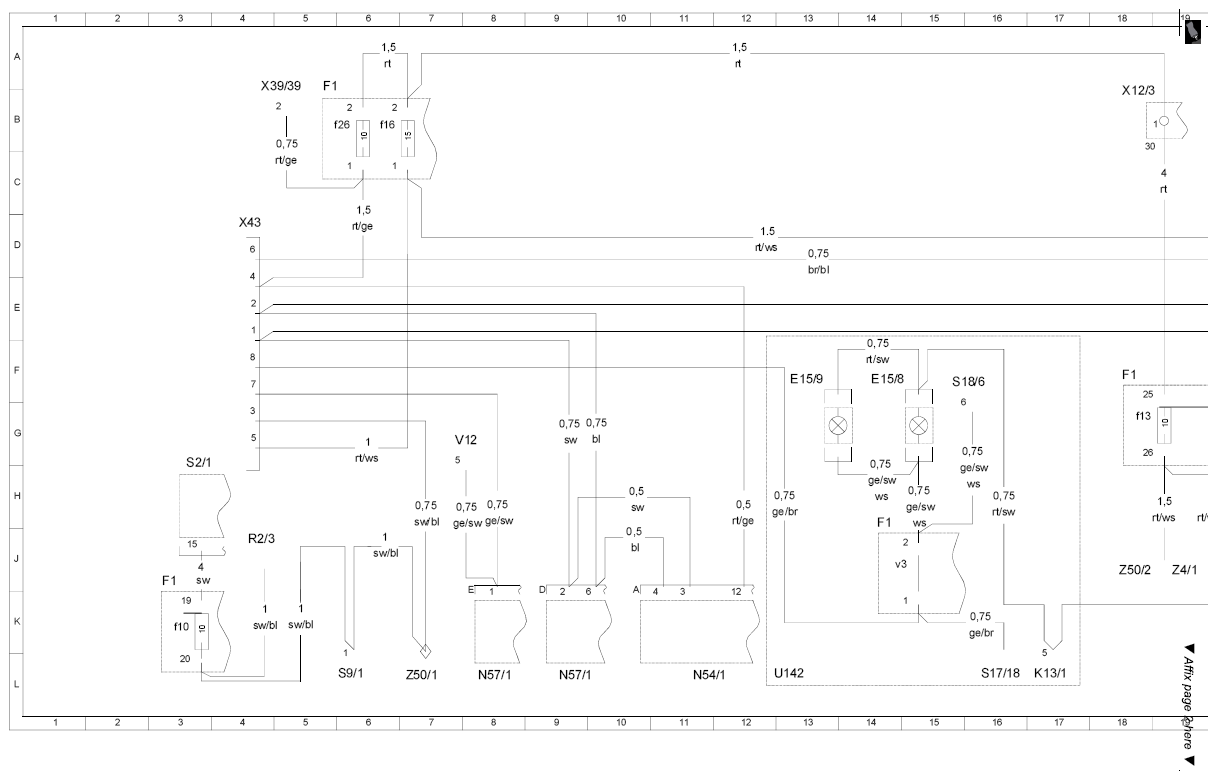

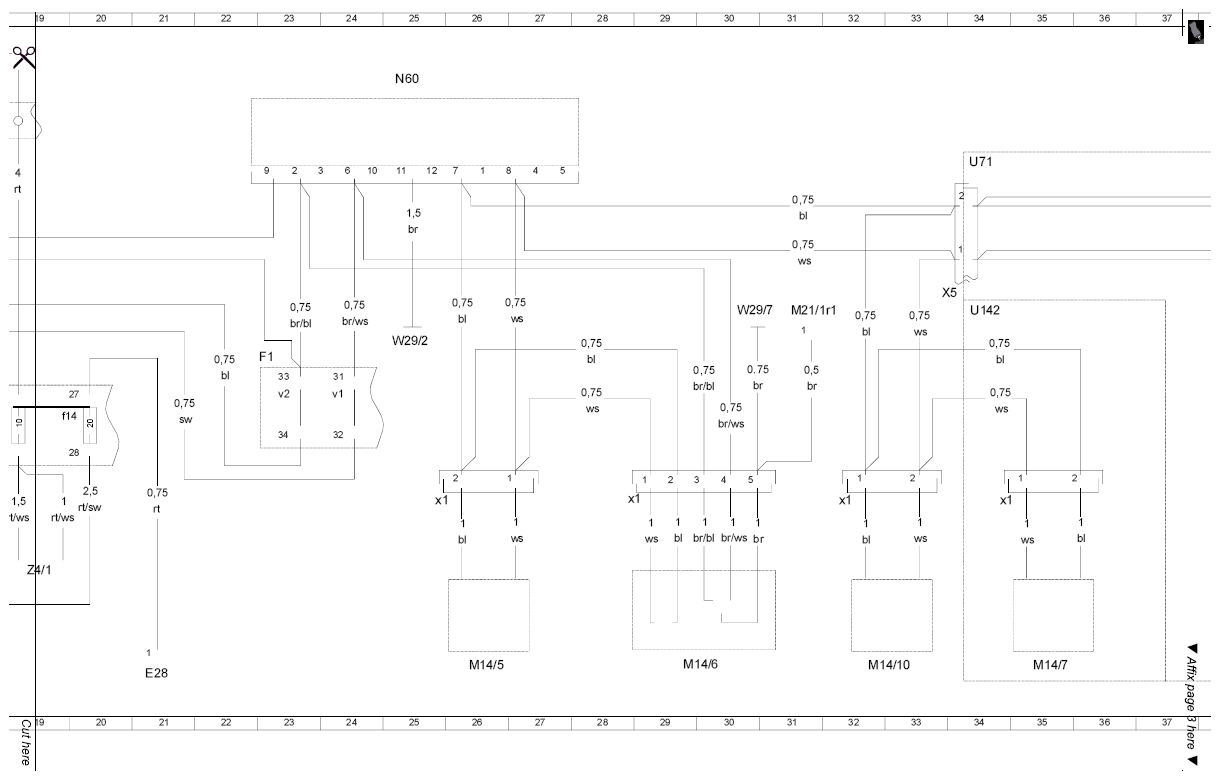

| E15/8 |
Left rear dome lamp |
14 F |
| E15/9 |
Right rear dome lamp |
13 F |
| E28 |
Test lamp (fuses) |
21 L |
| F1 |
Fuse box |
3 K |
| F1 |
Fuse box |
5 B |
| F1 |
Fuse box |
14 J |
| F1 |
Fuse box |
18 F |
| F1 |
Fuse box |
23 F |
| F1f10 |
Fuse 10 |
3 K |
| F1f13 |
Fuse 13 |
18 G |
| F1f14 |
Fuse 14 |
19 G |
| F1f16 |
Fuse 16 |
6 B |
| F1f26 |
Fuse 26 |
5 B |
| F1v1 |
Plug-in diode 1 |
24 G |
| F1v2 |
Plug-in diode 2 |
23 G |
| F1v3 |
Plug-in diode 3 |
14 J |
| K13/1 |
Heated rear window relay |
17 L |
| M14/10 |
Fuel filler flap CL [ZV] motor |
32 L |
| M14/10x1 |
Fuel filler flap CL [ZV] motor connector |
32 H |
| M14/5 |
Right front door CL [ZV] motor |
26 L |
| M14/5x1 |
Right front door CL [ZV] motor connector |
25 H |
| M14/6 |
Left front door CL [ZV] motor |
29 L |
| M14/6x1 |
Left front door CL [ZV] motor connector |
28 H |
| M14/7 |
Rear-end door CL [ZV] motor |
35 L |
| M14/7x1 |
Rear-end door CL [ZV] motor connector |
34 H |
| M14/8 |
Left rear door CL [ZV] motor |
39 L |
| M14/8x1 |
Left rear door CL [ZV] motor connector |
38 H |
| M14/9 |
Right rear door CL [ZV] motor |
42 L |
| M14/9x1 |
Right rear door CL [ZV] motor connector |
41 H |
| M21/1r1 |
Mirror heater |
31 E |
| N54/1 |
Drive authorization system infrared control unit |
11 L |
| N57/1 |
Convenience feature control unit |
8 L |
| N57/1 |
Convenience feature control unit |
9 L |
| N60 |
CL [ZV] control unit |
25 B |
| R2/3 |
Right washer nozzle heater |
4 J |
| S17/18 |
Tailgate contact switch |
16 L |
| S18/6 |
Rear interior lamp switch |
15 F |
| S2/1 |
Ignition/starter switch |
3 H |
| S9/1 |
Stop lamp switch |
6 L |
| U142 |
Not valid for convertible |
12 L |
| U142 |
Not valid for convertible |
34 E |
| U71 |
Valid for five-door model |
34 C |
| V12 |
Interior lights diodes |
7 G |
| W29/2 |
Ground (right A-pillar) |
25 F |
| W29/7 |
Ground (steering column) |
30 E |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
18 B |
| X39/39 |
Handy connector |
4 B |
| X43 |
ATA [EDW]/central locking (CL [ZV]) connector |
4 D |
| X5 |
Rear door feed connector |
33 E |
| Z4/1 |
Circuit 30 (fused) connector sleeve, convenience and rear dome lamp |
19 J |
| Z50/1 |
Connector sleeve 1 |
7 L |
| Z50/2 |
Connector sleeve 2 |
18 J |
