Remove/install rear seat cushion - AR91.12-P-1020TB

MODEL 211.2

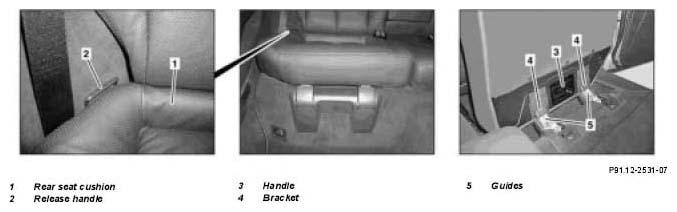

Fig 1: Identifying Rear Seat Switch, Handle, Bracket, Guides And Release Handle
G04987083
REMOVINGINSTALLING Remove/install
1 Pull release handle (2) upwards and place left or right rear seat cushion (1) into vertical position IMPORTANTInstallation:  Rear seat cushion (1) must latch into place.
2 Pull handle (3) on the back of the rear seat cushion (1) and remove IMPORTANTInstallation:  Insert bracket (4) of rear seat cushion (1) into the guides (5) at the pivot bearing and latch into place.
3 Install in the reverse order
