Remove/install cover below instrument panel (right) - AR68.10-P-1520T

MODEL 211.0/ 2/ 6

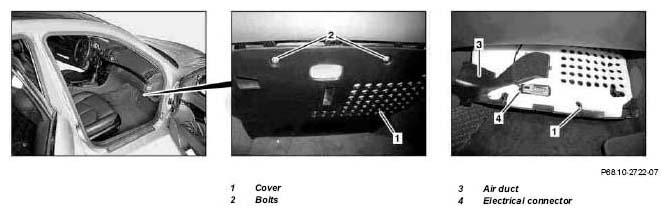

Fig 1: Identifying Cover Below Instrument Panel (Right)

Shown on model 211.0

MODIFICATION NOTES

8.1.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Move front passenger's seat all the way to the rear	See Operating Instructions
2	Switch off interior lighting	See Operating Instructions
3	Unscrew bolts (2)
4	Fold cover (1) downward	Installation:  Ensure correct connection of the air duct (3).
5	Disconnect electrical connector (4)
6	Remove cover (1) to the rear out of the footwell
7	Install in the reverse order
