Active service system (ASSYST PLUS), operating instructions - GF00.20-P-0004-01TA

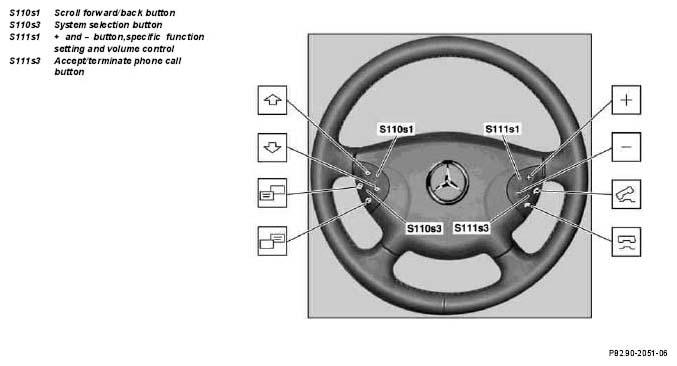

Fig 1: Identifying Active Service System (ASSYST PLUS), Operating Instructions

Service indicator on driver request in ASSYST PLUS system

The displays shown are executed equally on various national versions. Only the translation in the set language changes.

Fig 2: Displaying Driver Request Service Indicator In ASSYST PLUS System

Procedure

Entry is possible to the first level in the multifunction display (A1p13) basic menu with "Circuit 15 ON". The temperature display and trip odometer should appear.

If a different display appears initially, it is necessary to select this display with the system selection button (S110s3) on the multifunction steering wheel (MFL).

Service indicator

Press scroll forward/back buttons on multifunction steering wheel (MFL) (S110s1) until service indicator (wrench) for ASSYST PLUS with scope of service and remaining distance (e.g. Service D) appears on the multifunction display (A1p13).

Fig 3: Displaying Service Indicator In ASSYST PLUS System

Call service menu

To call the "SERVICE MENU" it is necessary to press the instrument illumination rheostat and reset button (A1r1) for 5 5 s.

Fig 4: Displaying Call Service Menu In ASSYST PLUS System

Navigation service menu

The display "SERVICE MENU" appears. With the + and a button, specific functions setting and volume control (S111s1) it is possible to navigate in the service menu and to select the desired items.

Fig 5: Displaying Navigation Service Menu In ASSYST PLUS System

The item can then be confirmed with the bottom system selection button (S110s3). The item can be exited with the top system selection button (S110s3).

The selection of possible button actuations is indicated in the small display at the bottom.

Call service data

To call the "SERVICE DATA", select this menu point with the + and a button, specific functions setting and volume control (S111s1). Then confirm with the bottom system selection button (S110s3).

Fig 6: Displaying Call Service Data In ASSYST PLUS System

Here, the workshop code is displayed. This serves as preliminary information for the workshop (optimum time in workshop).

All menu items and their submenus in the SERVICE MENU, such as "SERVICE DATA", can be operated with the + and a button, specific functions setting and volume control (S111s1) and the bottom system selection button (S110s3) for confirmation. The selection of possible button actuations is indicated in the small display at the bottom.

Reset ASSYST PLUS after service

Reset ASSYST PLUS only after service!

Sequence:

1. Insert transmitter key (A8/1) in EZS control unit (N73) and turn to position "Circuit 15 ON".
2nd Call "SERVICE MENU".

Select menu point "CONFIRMATION" with the + and a button, specific functions setting and volume control (S111s1).

3rd Select menu point "CONFIRM" with bottom system selection button (S110s3).

4th Mark selection point "STANDARD OIL" by pressing the + and a button, specific functions setting and volume control (S111s1) and select and confirm the menu point "SERVICE CONFIRMED" by pressing the bottom system selection button (S110s3) again.

5th The service displayed has been reset.
6. Press the top system selection button (S110s3) repeatedly until the basic menu appears. ASSYST PLUS then calculates the next new service date.

Confirmation

Select menu point "CONFIRMATION" with the + and a button, specific functions setting and volume control (S111s1).

Select menu point "CONFIRM" with bottom system selection button (S110s3).

Fig 7: Displaying Confirmation In ASSYST PLUS System
