Arrangement and assignment of the wiring and plug connectors, engine compartment (left) - GF00.19-U-1000-01DA

MODEL 211

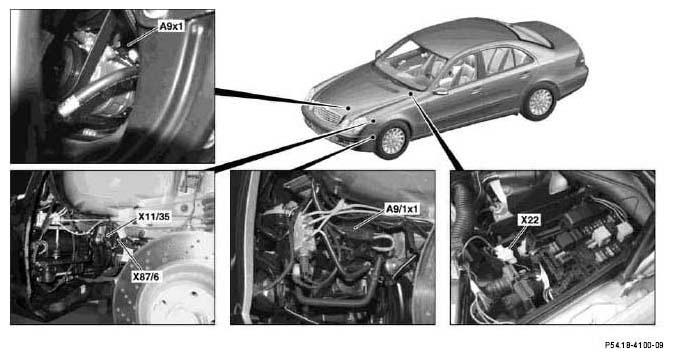

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Left) (1 Of 3)
G04982371

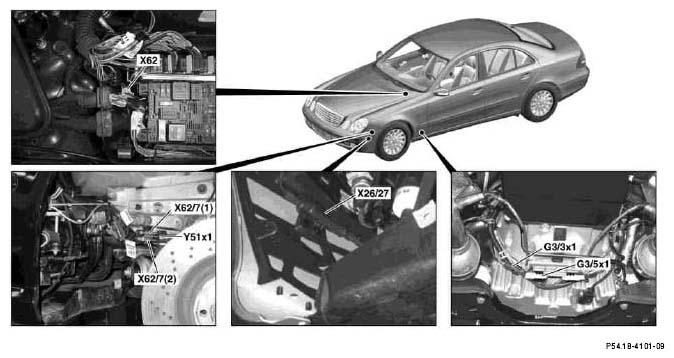

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Left) (2 Of 3)
G04982372

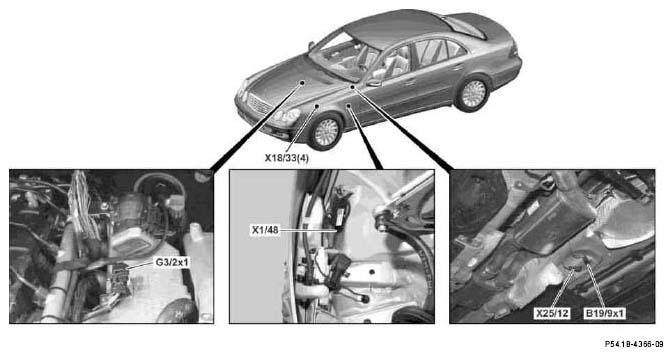

Fig 3: Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Left) (3 Of 3)
G04982373
Item Designation Cable colors Cable colors Notes
A9/1x1 Air compressor motor connector BN PLUG 1 SOCKET BN
    RDWH PLUG 2 SOCKET RD
A9x1 AC compressor connector PLUG 1 SOCKET BUGN M156, M272, M273, M642
B19/9x1 Temperature sensor connector upstream of diesel particulate filter
  M642 GY PLUG 1 SOCKET
    GYBK PLUG 2 SOCKET
G3/2x1 O2 sensor upstream TWC [KAT] connector
  M648 PLUG 1 SOCKET GYBK
    PLUG 2 SOCKET GYBU
    PLUG 3 SOCKET GYBN
    PLUG 4 SOCKET RDBK
    PLUG 5 SOCKET GYWH
    PLUG 6 SOCKET GNBK
G3/3x1 Left O2 sensor upstream TWC [KAT] connector RDGN PLUG 1 SOCKET M112, M113, M113AMG
    BNBK PLUG 2 SOCKET M112, M113, M113AMG
    GN PLUG 3 SOCKET M112, M113, M113AMG
    BK PLUG 4 SOCKET M112, M113, M113AMG
G3/3x1 Left O2 sensor upstream TWC [KAT] connector PLUG 1 SOCKET BKVT M272
    PLUG 2 SOCKET BKGN M272
    PLUG 3 SOCKET PK M272
    PLUG 4 SOCKET RDGN M272
    PLUG 5 SOCKET YEWH M272
    PLUG 6 SOCKET BKYE M272
G3/3x1 Left O2 sensor upstream TWC [KAT] connector PLUG 1 SOCKET BKVT M273
    PLUG 2 SOCKET BKGN M273
    PLUG 3 SOCKET BNYE M273
    PLUG 4 SOCKET RDYE M273
    PLUG 5 SOCKET YEWH M273
    PLUG 6 SOCKET BKYE M273
G3/3x1 Left O2 sensor upstream TWC [KAT] connector PLUG 1 SOCKET GYPK M156
    PLUG 2 SOCKET GNPK M156
    PLUG 3 SOCKET GYOG M156
    PLUG 4 SOCKET RDBK M156
    PLUG 5 SOCKET GYRD M156
    PLUG 6 SOCKET GNYE M156
G3/5x1 Left O2 sensor downstream TWC [KAT] connector RDGN PLUG 1 SOCKET M112, M113; M113AMG
    BNBK PLUG 2 SOCKET M112, M113, M113AMG
    BNWH PLUG 3 SOCKET M112, M113, M113AMG
    YE PLUG 4 SOCKET M112, M113, M113AMG
G3/5x1 Left O2 sensor downstream TWC [KAT] connector RDBK PLUG 1 SOCKET M156
    BNBK PLUG 2 SOCKET M156
    BUBN PLUG 3 SOCKET M156
    YE PLUG 4 SOCKET M156
G3/5x1 Left O2 sensor downstream TWC [KAT] connector RDYE PLUG 1 SOCKET M273
    VTYE PLUG 2 SOCKET M273
    BNWH PLUG 3 SOCKET M273
    GYWH PLUG 4 SOCKET M273
X1/48 Left front tire pressure monitor separation point RDGY PLUG 1 SOCKET RDGY
    YEGN PLUG 2 SOCKET YEGN
    BNBK PLUG 3 SOCKET BNBK
    BNBK PLUG 4 SOCKET BNBK
X11/35 Air suspension separation point
  M113 AMG, M156 PLUG 1 SOCKET BURD
    PLUG 2 SOCKET BNBK
    PLUG 3 SOCKET YEGN
      4
    PLUG 5 SOCKET GYBU
    PLUG 6 SOCKET GNWH
X18/33 (4) SPS [PML] connector GNVT PLUG 1 SOCKET GNVT
    GNPK PLUG 2 SOCKET GNPK
X22 Engine compartment and engine connector BN PLUG 1 SOCKET BN M648
X25/12 Charge air pressure sensor separation point VTWH PLUG 1 SOCKET VTWH M642
    BNWH PLUG 2 SOCKET BNWH M642
    BUWH PLUG 3 SOCKET BUWH M642
      4
X26/27 Front PTS separation point BKYE PLUG 1 SOCKET BKYE
    BNBU PLUG 2 SOCKET BNBU
    BKWH PLUG 3 SOCKET BKWH
    WHRD PLUG 4 SOCKET WHRD
    YEWH PLUG 5 SOCKET YEWH
    YEVT PLUG 6 SOCKET YEVT
    YERD PLUG 7 SOCKET YERD
    WHYE PLUG 8 SOCKET WHYE
X62 VSS [GES] connector (signals) BK PLUG 1.1 SOCKET BK UP TO 05/06
    BKGN PLUG 1.2 SOCKET BKGN UP TO 05/06
    WH PLUG 1.3 SOCKET WH UP TO 05/06
    WHGN PLUG 1.4 SOCKET WHGN UP TO 05/06
    BKPK PLUG 1.5 SOCKET BKPK UP TO 05/06
    BKRD PLUG 1.6 SOCKET BKRD UP TO 05/06
X62 VSS [GES] connector (signals) BK PLUG 1.1 SOCKET BK AS OF 06/06
    BKGN PLUG 1.2 SOCKET BKGN AS OF 06/06
    WH PLUG 1.3 SOCKET WH AS OF 06/06
    WHGN PLUG 1.4 SOCKET WHGN AS OF 06/06
    BKPK PLUG 1.5 SOCKET BKPK AS OF 06/06
      1.6   AS OF 06/06
    GY PLUG 1.7 SOCKET GY AS OF 06/06
    RDBU PLUG 1.8 SOCKET RDBU AS OF 06/06
    BUWH PLUG 3.1 SOCKET BUWH AS OF 06/06
    BU PLUG 3.2 SOCKET BU AS OF 06/06
    RDGN PLUG 3.3 SOCKET RDGN AS OF 06/06
    YERD PLUG 3.4 SOCKET YERD AS OF 06/06
    GNWH PLUG 3.5 SOCKET GNWH AS OF 06/06
    GN PLUG 3.6 SOCKET GN AS OF 06/06
    BNWH PLUG 3.7 SOCKET BNWH AS OF 06/06
    RDBK PLUG 3.8 SOCKET RDBK AS OF 06/06
X62/7 (1) Left front axle multiple circuit junction connector, in component compartment
  up to 05/06 PLUG 1 SOCKET BKYE
    PLUG 2 SOCKET YE
  Except All-wheel drive PLUG 1 SOCKET BKYE as of 06/06
    PLUG 2 SOCKET YE as of 06/06
  All-wheel drive PLUG 1 SOCKET BKOG as of 06/06
    PLUG 2 SOCKET OG as of 06/06
X62/7 (2) Left front axle multiple circuit junction connector, in component compartment PLUG 1 SOCKET BNWH UP TO 05/05
    PLUG 2 SOCKET BN UP TO 05/05
X87/6 Fuse and relay module and fanfare horns intermediate connector BN PLUG 1 SOCKET BN M113 AMG
    YE PLUG 2 SOCKET YE M113 AMG
Y51x1 Left front axle damping valve unit connector PLUG 1 SOCKET WHGN
    PLUG 2 SOCKET WHGY
    PLUG 3 SOCKET GYRD
