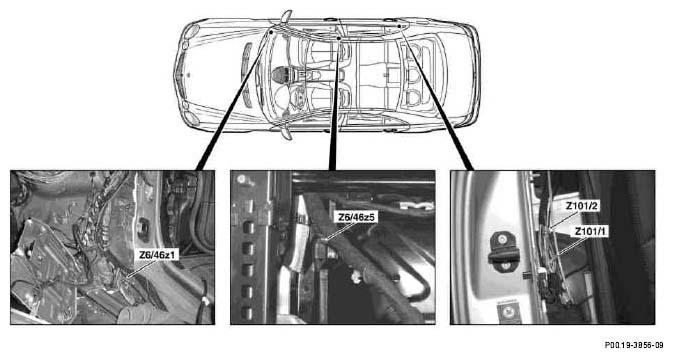

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (right) - GF00.19-U-3000-05DA
MODEL 211
| Z conn. sleeve | Designation | Comp. | Designation | Conn. pin |
|---|---|---|---|---|
| Z6/46z1 | Ground (W15/1) connector sleeve | ← W15/1 | Ground (right footwell) | |
| UP TO 05/05 | → E17/17 | Right rear footwell lamp | 1 | |
| → N2/13 | WSS control unit (Weight Sensing System) | 1.1 | ||
| UP TO 05/06 | → N10/11 | Passenger-side SAM control module | I1.1 | |
| → R12/10 | Right side airbag ignition squib | 2 | ||
| → S10/4 | Right rear brake pad contact sensor | |||
| → S17/4 | Right front door contact switch | 1 | ||
| → S17/6 | Right rear door contact switch | 1 | ||
| UP TO 02/03 | → X55/4 | Front passenger seat contacting strip | 7.3 10.1 12.4 12.10 |
|
| AS OF 03/03 | → X55/4 | Front passenger seat contacting strip | 2.1 2.6 2.10 |
|
| → X62/33 | Right rear axle electrical distributor connector | A.1 1.1 |
||
| AS OF 06/05 | → Z6/46z5 | Ground (W15/1) connector sleeve | ||
| Z6/46z5 | Ground (W15/1) connector sleeve | |||
| AS OF 06/05 | ← Z6/47z1 | Ground (W15/2) connector sleeve | ||
| AS OF 06/05 | → E17/17 | Right rear footwell lamp | 1 | |
| AS OF 06/05 | → X55/4 | Front passenger seat contacting strip | 2.10 | |
| AS OF 06/05 | → X150/2 | Front passenger NECK-PRO head restraint solenoid separation point | 1 | |
| AS OF 06/05 | → Y24/13 | Front passenger NECK-PRO head restraint solenoid | 1 | |
| Z101/1 | Pulse width module fuel pump connector sleeve | |||
| M156 | ← N3/10 | ME-SFI [ME] control module | 2.17 | |
| M156 | → N118/3 | Left fuel pump control unit | 2.1 | |
| M156 | → N118/4 | Right fuel pump control unit | 2.1 | |
| Z101/2 | Fuel pump connector sleeve | |||
| M156 | ← N3/10 | ME-SFI [ME] control module | 2.8 | |
| M156 | → N118/3 | Left fuel pump control unit | 2.2 | |
| M156 | → N118/4 | Right fuel pump control unit | 2.2 |
