220 589 01 22 00 DC - Navigation test CD - WS82.00-P-0031B

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 82/Set B

MODELS 163, 203, 208, 209, 210, 215, 220, 230, 463

Use:

Diagnosis-augmenting aid for DAS for testing the CD drive and the GPS receiver in the navigation processor for COMAND.

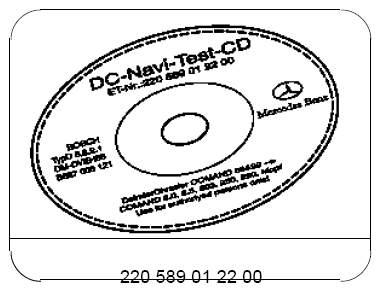

Fig 1: Identifying Navigation Test CD (220 589 01 22 00)

Courtesy of MERCEDES-BENZ USA
