210 589 01 43 00 Puller and installation tool - WS35.00-P-0146C

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 35/Set C

MODEL 210, 171, 172

Use/specification:

Puller and installation tool for rubber mount on rear axle

VEHICLE

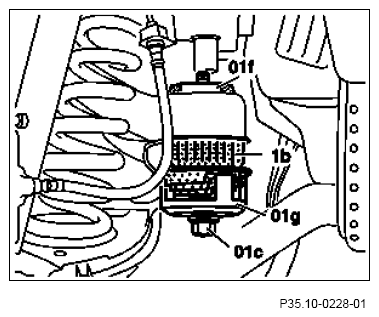

Fig 1: Pulling Rubber Mount From Rear Axle
G07743328Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Puller And Installation Tool (210 589 01 43 00)
G07743329Courtesy of MERCEDES-BENZ USA
