202 589 03 43 00 Puller and installation tool - WS35.00-P-0145C

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 35/Set C

MODEL 170, 202, 208

Use/specification:

Puller and installation tool for rear rubber mount from rear axle carrier

VEHICLE

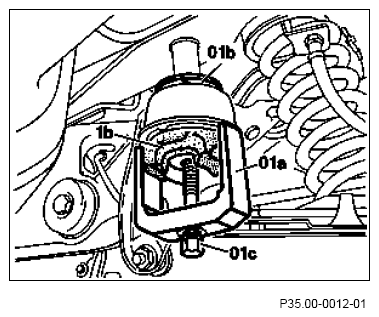

Fig 1: Removing Rear Rubber Mount
G07743326Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Puller And Installation Tool (202 589 03 43 00)
G07743327Courtesy of MERCEDES-BENZ USA
