Install/weld in rear end - AR64.20-P-1020-03Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 209.3 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01G | Gap dimension | Trunk lid to top of rear fender | Dimension "G" | mm | 3.5 (±0.5) |
| Trunk lid to taillamp | Dimension "H" | mm | 3.5 (±0.5) | ||
| Trunk lid to bumper | Dimension "I" | mm | 5 (-1) | ||
| Rear fender to taillamp | Dimension "J" | mm | 2 (±0.5) | ||
| Trunk lid cover to taillamp | Dimension "K" | mm | - | ||
| Fig., see | AR60.00-P-0700-01Q | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
- Install rear end, taillamps, rubber seal and striker eye.

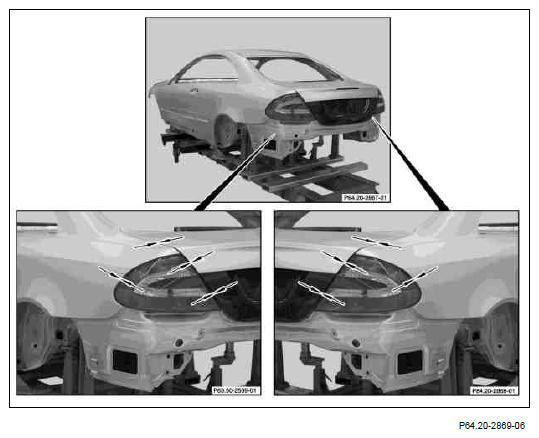

- Check gaps and adjust between trunk lid and upper rear fender trunk lid and taillamp rear fender and taillamp trunk lid cover and taillamp
Use feeler gauge!

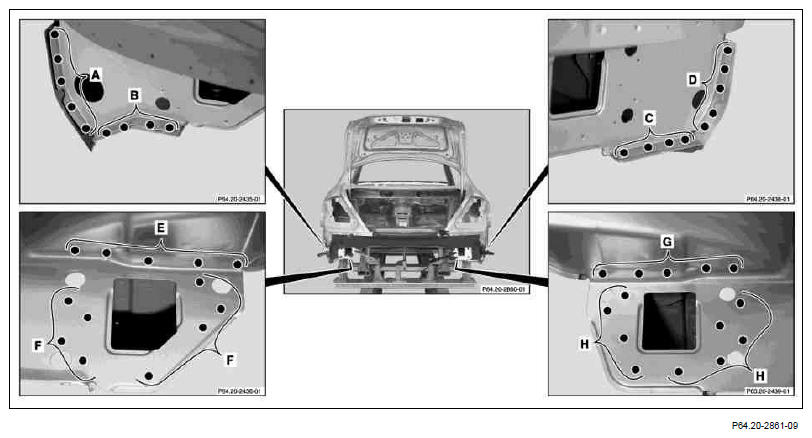

- Weld in rear end with
(areas A to H).

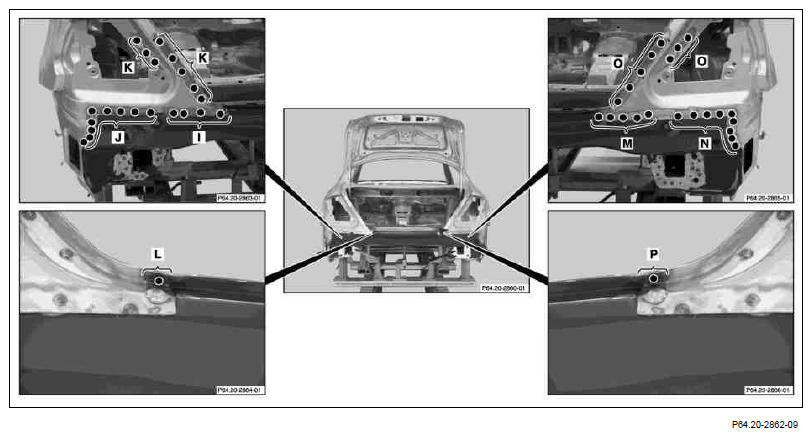

- Weld in rear end with
