124 589 04 21 00 Gage pins - WS40.00-P-0017C

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

FG 40/Set C

MODEL 124, 129, 170, 201, 202, 203, 208, 210

Use:

Gage pins (2 pieces) for testing wheel carrier connection between camber strut and spring link

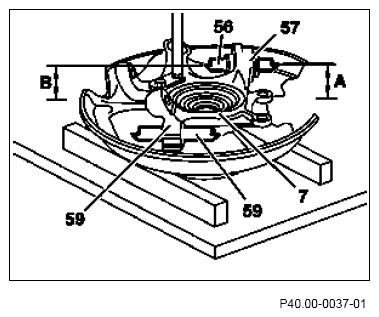

Fig 1: Testing Wheel Carrier Connection Between Camber Strut And Spring Link

Courtesy of MERCEDES-BENZ USA

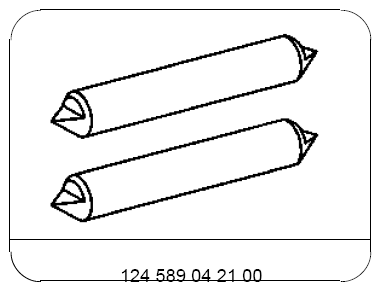

Fig 2: Identifying Gage Pins (124 589 04 21 00)

Courtesy of MERCEDES-BENZ USA
