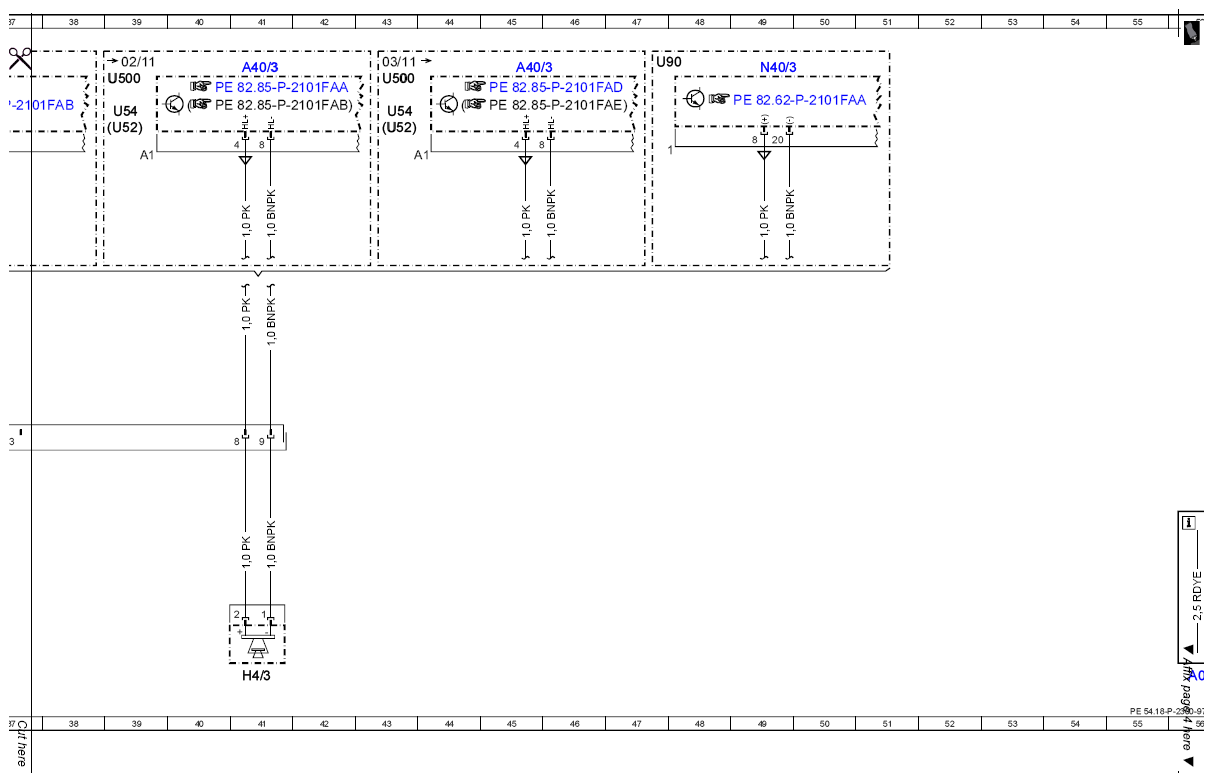

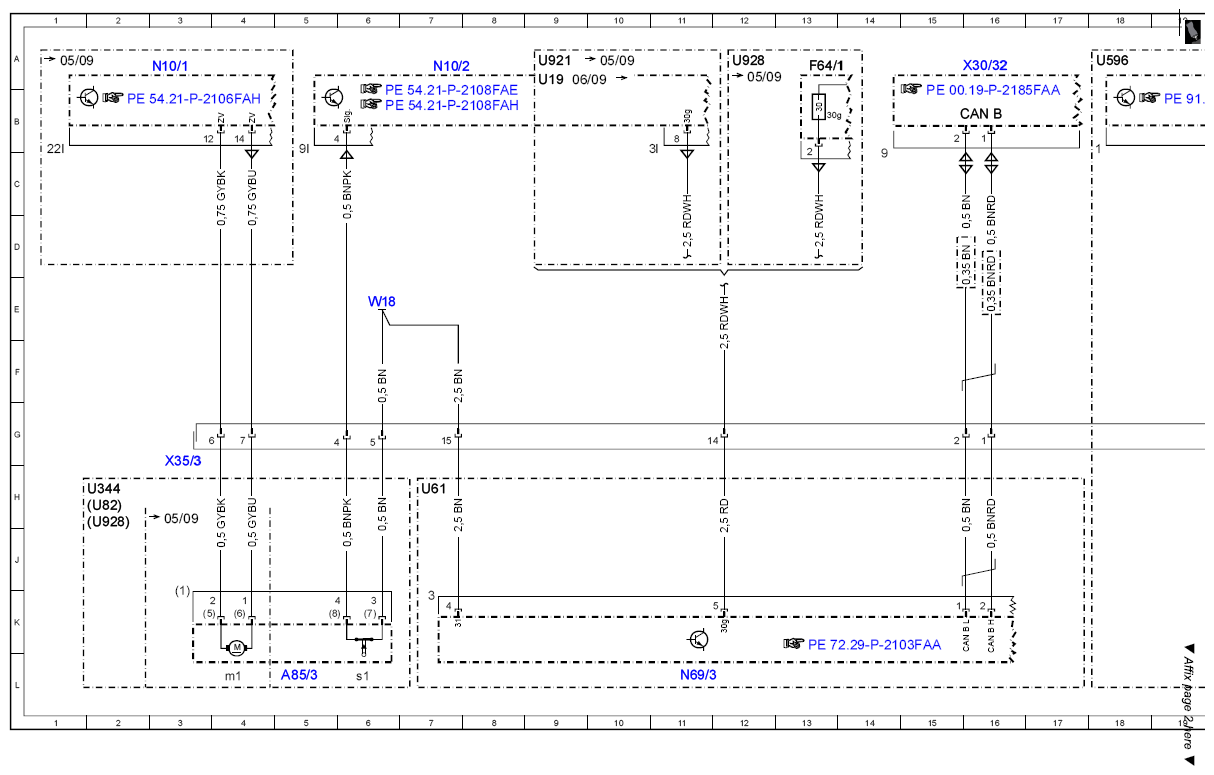

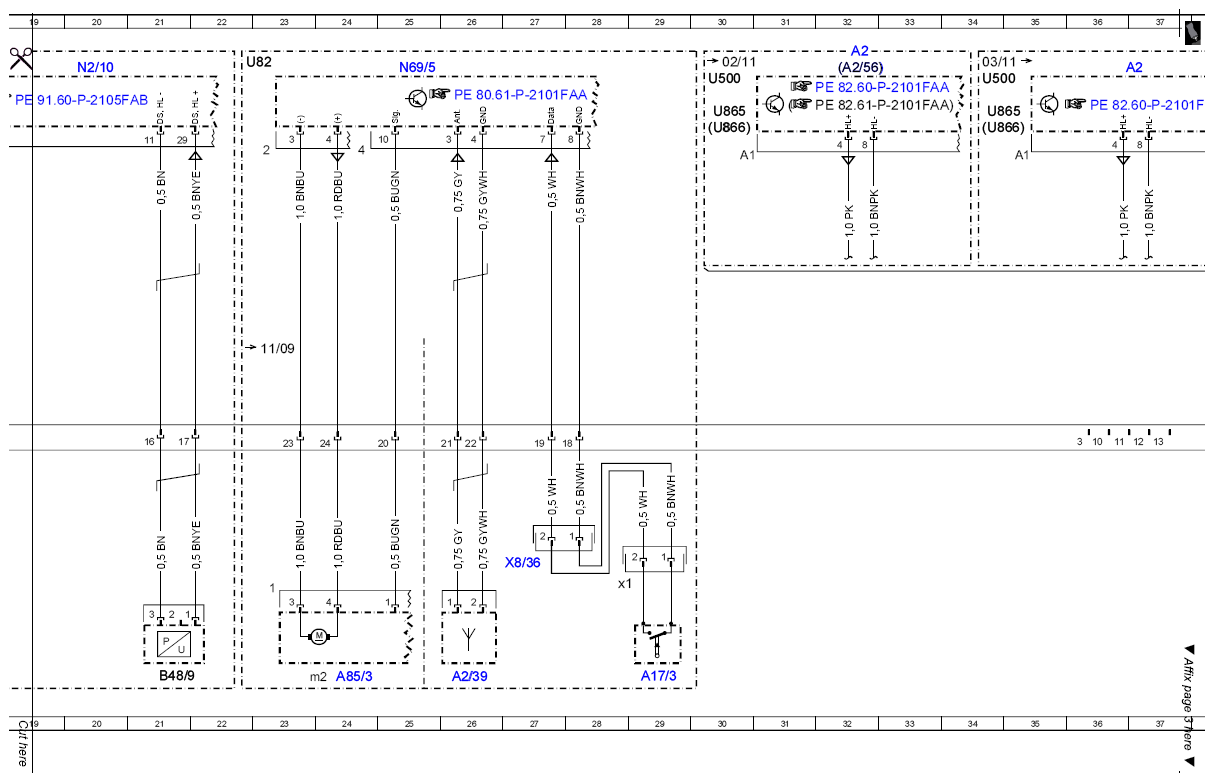

Connector separation point wiring diagram - PE54.18-P-2300-97FAD
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| A17/3 | Left rear KEYLESS GO door handle | 29L |
| A17/3x1 | Left rear KEYLESS GO door handle electrical connector | 28J |
| A2 | Radio | 37A |
| A2 | Radio | 32A |
| A2/39 | Left rear door KEYLESS GO antenna | 26L |
| A2/56 | Radio with auto pilot system | 32A |
| A40/3 | COMAND control unit | 45A |
| A40/3 | COMAND control unit | 41A |
| A85/3 | Left rear door lock | 5L |
| A85/3 | Left rear door lock | 24L |
| A85/3m1 | Left rear door central locking motor | 4L |
| A85/3m2 | Left rear door opening assist motor | 23L |
| A85/3s1 | Left rear door rotary tumbler switch | 6L |
| B48/9 | Left rear door pressure sensor | 21L |
| CAN B | Interior CAN | 16B |
| F64/1 | Left rear door control unit fuse carrier | 13A |
| H4/3 | Left rear door speaker | 41L |
| N10/1 | Front SAM control unit with fuse and relay module | 3A |
| N10/2 | Rear SAM control unit with fuse and relay module | 7A |
| N2/10 | Supplemental restraint system control unit | 20A |
| N40/3 | Sound system amplifier control unit | 49A |
| N69/3 | Left rear door control unit | 11L |
| N69/5 | KEYLESS-GO control unit | 25A |
| U19 | Valid for standard equipment | 9A |
| U344 | Valid for all except KEYLESS GO | 2H |
| U500 | Not valid for sound system | 34A |
| U500 | Not valid for sound system | 43A |
| U500 | Not valid for sound system | 30A |
| U500 | Not valid for sound system | 39A |
| U52 | Valid for Japan | 43B |
| U52 | Valid for Japan | 39B |
| U54 | Valid for all except Japan | 43B |
| U54 | Valid for all except Japan | 39B |
| U596 | Valid for rear sidebag | 18A |
| U61 | Not valid for model 204.3 | 7H |
| U82 | Valid for KEYLESS GO | 2H |
| U82 | Valid for KEYLESS GO | 22A |
| U865 | Valid for Audio 20 | 34B |
| U865 | Valid for Audio 20 | 30B |
| U866 | Valid for Audio 50 | 34B |
| U866 | Valid for Audio 50 | 30B |
| U90 | Valid for sound system | 47A |
| U921 | Not valid for England | 9A |
| U928 | Valid for England | 2H |
| U928 | Valid for England | 12A |
| W18 | Left front seat crossmember ground point | 6E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 16A |
| X35/3 | Left rear door electrical connector | 3H |
| X8/36 | Left rear KEYLESS GO door handle electrical connector | 27J |
