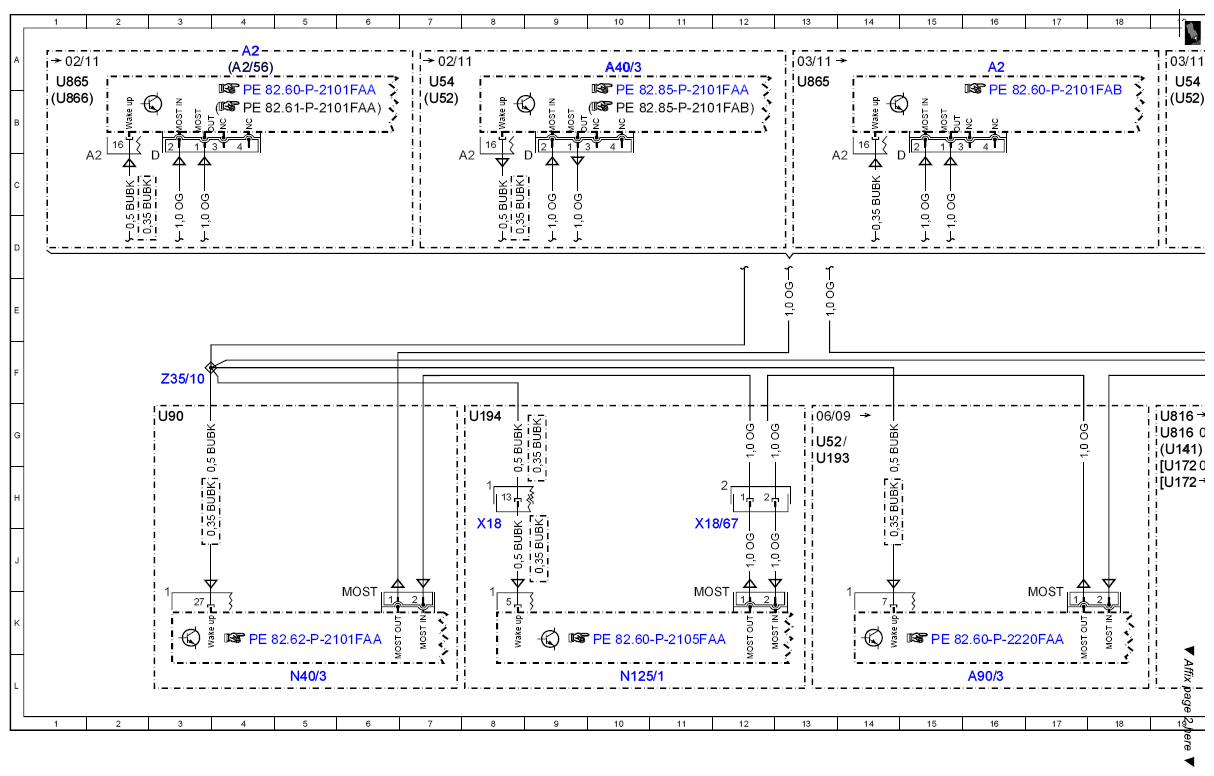

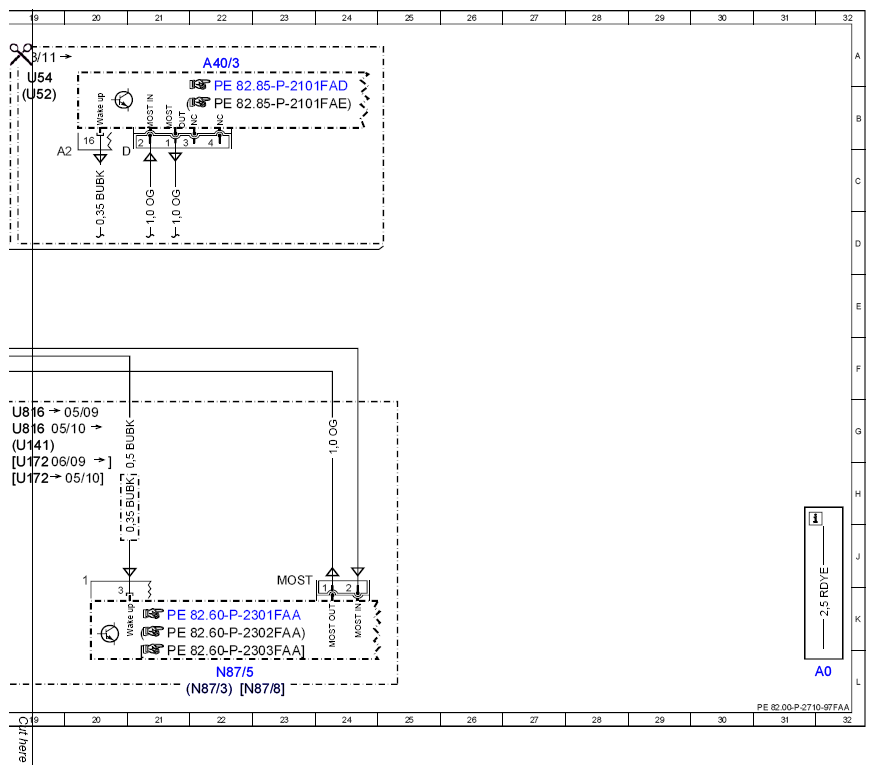

Wiring diagram for MOST bus - PE82.00-P-2710-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2 | Radio | 4A |
| A2 | Radio | 16A |
| A2/56 | Radio with auto pilot system | 4A |
| A40/3 | COMAND control unit | 10A |
| A40/3 | COMAND control unit | 22A |
| A90/3 | TV digital tuner | 16L |
| N125/1 | Media interface control unit | 10L |
| N40/3 | Sound system amplifier control unit | 5L |
| N87/3 | Digital Audio Broadcasting control unit | 22L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 22L |
| N87/8 | SDAR control unit / high definition tuner | 22L |
| U141 | Valid for Digital Audio Broadcasting | 19G |
| U172 | Valid for high-definition tuner control unit | 19H |
| U172 | Valid for high-definition tuner control unit | 19H |
| U193 | Valid for TV and Video | 13G |
| U194 | Valid for AUX jack | 8G |
| U52 | Valid for Japan | 7B |
| U52 | Valid for Japan | 13G |
| U52 | Valid for Japan | 19B |
| U54 | Valid for all except Japan | 7A |
| U54 | Valid for all except Japan | 19A |
| U816 | Valid for satellite digital audio radio (SDAR) | 19G |
| U816 | Valid for satellite digital audio radio (SDAR) | 19G |
| U865 | Valid for Audio 20 | 1A |
| U865 | Valid for Audio 20 | 13A |
| U866 | Valid for Audio 50 | 1B |
| U90 | Valid for sound system | 3G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 8H |
| X18/67 | Media interface electrical connector | 12H |
| Z35/10 | MOST wake-up signal connector sleeve | 3F |
