Remove contacts from sensor laminated contact connector - AR00.19-P-0120-01B

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying SLK 2.8 Blade (220 589 01 99 62)

Courtesy of MERCEDES-BENZ USA

Unpin secondary release on version with contact retainer

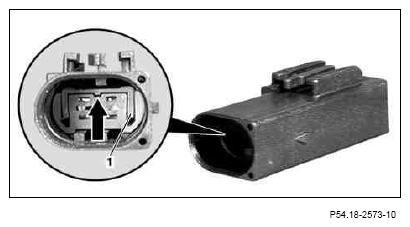

Using a suitable tool, push tabs of contact retainer (1) in direction of arrow out of locked position.

Fig 5: Identifying Tabs Of Contact Retainer
Courtesy of MERCEDES-BENZ USA

Unpin contact pins from the connector
Insert blade holder with clamping pliers and SLK 2.8 blade from front side though openings at contact cavity of connector (1).
Insert tool carefully to prevent damaging webs at openings of contact cavity.

This presses together the springs of the contact pin (2).

Fig 6: Inserting Blade Holder From Front Side Though Openings At Contact Cavity Of Connector
Courtesy of MERCEDES-BENZ USA
A slight tug on the corresponding cable will remove the contact pin from the connector.
Rocking the contact pin back and forth, thus making use of the full housing tolerance, may help to unpin the contact.
