Remove contacts from Micro Timer 3 coupling - AR00.19-P-0120-06A

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MT 3 Blade (220 589 01 99 54)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with sliding plate

Using a suitable tool, push sliding plate out of locked position.

Fig 5: Pushing Sliding Plate Out Of Locked Position
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with locking slider
Using a suitable tool, pry locking slider out of locked position.

Fig 6: Prying Locking Slider Out Of Locked Position
Courtesy of MERCEDES-BENZ USA

Remove female contact from coupling
Insert blade holder with clamping pliers and MT 3 blade from front side though openings at contact cavity of coupling.
Do not damage webs between contact cavity and openings for release tool.

This pushes together the springs at the female contact (1).

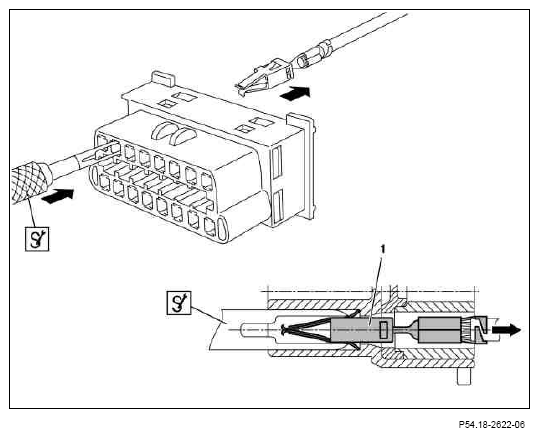

Fig 7: Inserting Blade Holder With MT 3 Blade From Front Side Though Openings At Contact Cavity Of Coupling
Courtesy of MERCEDES-BENZ USA
A slight tug on the corresponding cable will remove the female contact from the coupling.
