Remove contacts from Junior Power Timer connector - AR00.19-P-0120-08A

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)
G07529771Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)
G07529772Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)
G07529773Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying JPT/SPT Blade (220 589 01 99 61)
G07529774Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying MCP 2.8/FL Blade. 2.8/JPT/SPT (000 589 13 99 30)
G07529775Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with locking bar

  1. Using a suitable tool, move locking bar (1) in direction of arrow out of locked position.
    Fig 6: Moving Locking Bar Out Of Locked Position
    G07529776Courtesy of MERCEDES-BENZ USA

    Unfasten secondary release on version with retaining cap (shown on Junior Power Timer, micro quadlock system (MQS) connector)

  2. Using a suitable tool, pry up the lock tab on the retaining cap (6).
  3. Move retaining cap (6) in direction of arrow up to the stop.
    Fig 7: Moving Retaining Cap Up To Stop
    G07529777Courtesy of MERCEDES-BENZ USA

    Unfasten secondary release on version with lock tab

  4. Insert suitable tool underneath locking tabs (1).
  5. Pry up the lock tabs (1) in direction shown by arrow.
    Fig 8: Prying Up Lock Tabs
    G07529778Courtesy of MERCEDES-BENZ USA

    Unpin contact pins from the connector

  6. Insert blade holder with SPECIAL TOOL clamping pliers with SPECIAL TOOL JPT/SPT blade or SPECIAL TOOL MCP 2.8/Fl blade. 2.8/JPT/SPT blade from the front through the openings in contact cavity of connector housing (3).

    IMPORTANT This results in the spring shackles of the contact pin (2) being compressed.

  7. Remove contact pin (2) from connector housing (3) by gently pulling the relevant cable.

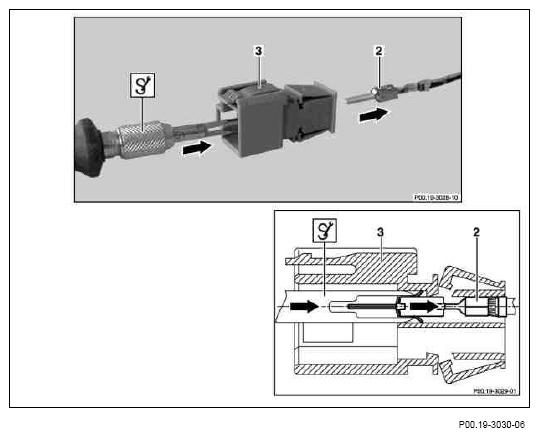

    Fig 9: Inserting Blade Holder From Front Through Openings In Contact Cavity Of Connector Housing
    G07529779Courtesy of MERCEDES-BENZ USA
