Relay assignment of fuse and relay box in trunk (204.0 /2 up to Year 8) - GF54.15-P-1257-04CW

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 /2 up to Model Year 8

Fuse and relay box in luggage compartment

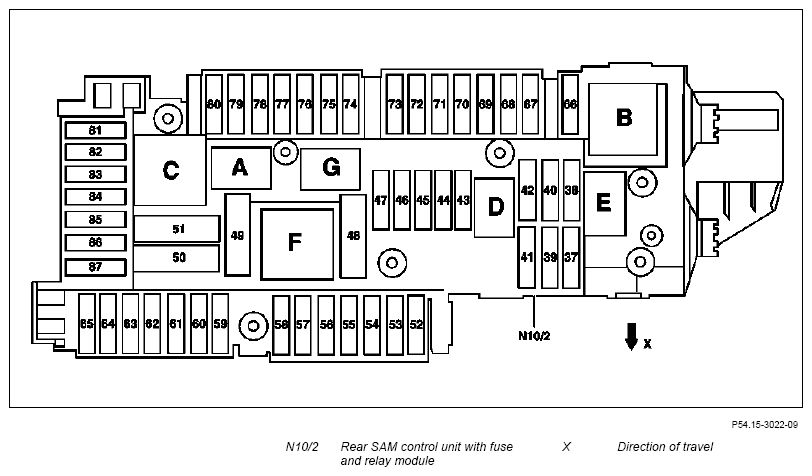

Fig 1: Identifying Fuse And Relay Box In Trunk Relay Assignment

Courtesy of MERCEDES-BENZ USA

Socket	Designation
A	Terminal 15 relay (N10/2kA)
B	Terminal 15R relay (1) (N10/2kB)
C	Heated rear window relay (N10/2kC)
D	Valid for diesel engine: Fuel pump relay (N10/2kD)
E	Valid for model 204.2: (N10/2kE Tailgate windshield wiper relay)
F	Valid without code (241) memory switch for left electrically adjustable driver seat and without code (242) Electrically adjustable front passenger seat with memory and without code (275) Memory package (driver seat, steering column, mirrors): Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
