Fuse assignment of fuse and relay box in trunk (204.0 /2 up to Model Year 8) - GF54.15-P-1256-06CW

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 /2 up to Model Year 8

Fuse and relay box in luggage compartment

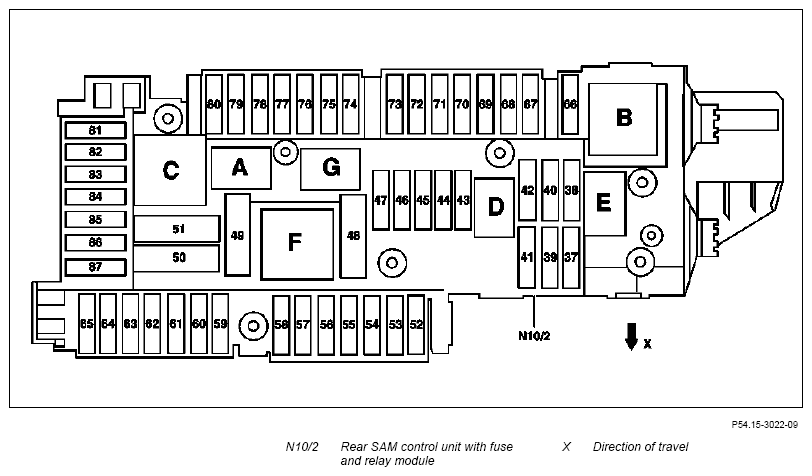

Fig 1: Identifying Rear SAM Control Unit With Fuse And Relay Module (Trunk)
G07531142Courtesy of MERCEDES-BENZ USA
Fuse Clamping device Cable ID (cable fused) Fused function Rating in amperes (A)
f37 15R BKGN 0.75
  • Driver seat NECK-PRO head restraint solenoid (Y24/12)
  • Front passenger seat NECK-PRO head restraint solenoid (Y24/13)
 7.5
f38 30g 1.5 BKYE Valid for model 204.2:
Fused via tailgate wiper relay (N10/2kE):
  • Tailgate wiper motor (M6/4)
 15
f39 30g 2.5 RDWH
  • Left rear door control unit (N69/3)
 30
f40 30g -
  • Spare
 -
f41 30g 2.5 RDGY
  • Right rear door control unit (N69/4)
 30
f42 30g 2.5 RDGN Valid for gasoline engine:
  • Fuel pump control unit (N118)
 20
    2.5 RDBU Valid for diesel engine:
  • Fused via fuel pump relay (N10/2kD):

  • Fuel pump (M3)

f43 30g -
  • Spare
 -
f44 30g 2.5 BKVT Valid for code (494) USA version
or with code (460) Canada version
without code (242) Electrically adjustable front passenger seat with memory:
  • Switch group, right front seat setting (S23)

Valid without code (242) Electrically adjustable front passenger seat with memory
without code (275) Memory package (driver seat, steering column, mirrors):
  • Front passenger seat partially electric seat adjustment switch (S23/1)
 30
f45 30g 2.5 BKYE  Valid for code (494) USA version
or with code (460) Canada version
without code (275) Memory package (driver seat, steering column, mirrors):
  • Left front seat adjustment switch group (S22)

Valid without code (241) memory switch for left electrically adjustable driver seat and without code (275) Memory package (driver seat, steering column, mirrors):
  • Driver seat partially electric seat adjustment switch (S22/1)

f46 30 0.5 RDYE
  • Antenna amplifier for rear window FM antenna(A2/19)
  • Rear window antenna amplifier 1 (A2/71)
 7.5
    0.5 RDBU
0, 35 BK		 Valid for code (551) Anti-theft alarm system (ATA [EDW]):
  • Alarm siren (H3/1)
  • Interior protection and tow-away protection control unit (N26/6)

      Valid for model 204.2 with code (498) Japan version:
    0.5 RDYE
  • TV 1 antenna amplifier and DAB Band III (A94/1)

    0.5 RDYE Valid for model 204.2 with code (537) Digital radio:
  • DAB band III antenna (A95/2)

      Valid for code (498) Japan version and for code (889) Keyless Go:
    0.5 RDYE
  • TV 2 antenna amplifier and KEYLESS GO (A94/2)

f47 - -
  • Spare
 -
f48 30g -
  • Spare
 -
f49 30g 4, 0 BK Fused via rear window heater relay (N10/2kC):
  • Rear window heater (R1)
 40
f50 30g 4.0 RDWH Valid for code (299) PRE-SAFE:
  • Right front reversible emergency tensioning retractor (A76/1)
 50
f51 30g 4.0 RDVT Valid for code (299) PRE-SAFE:
  • Left front reversible emergency tensioning retractor (A76)
 50
f52 - -
  • Spare
 -
f53 54 0.75 BKWH Valid for code (550) Trailer hitch:
  • Trailer recognition control unit (N28/1)
 30
f54 15 0.75 PKRD Valid for code (550) Trailer hitch:
  • Trailer recognition control unit (N28/1)
 7.5
f55 - -
  • Spare
 -
f56 15 1.5 BKRD Valid for code (550) Trailer hitch:
  • Trailer recognition control unit (N28/1)
 15
f57 30g 2.5 RDYE Valid for code (550) Trailer hitch:
  • Trailer recognition control unit (N28/1)
 20
f58 30g 2.5 RDGN Valid for code (550) Trailer hitch:
  • Trailer recognition control unit (N28/1)
 30
f59 15 0.5 PKRD Valid for code (220) Parktronic system (PTS):
  • PARKTRONIC control unit (N62)
 7.5
    1.0 PKRD Valid for code (230) Exclusive parking assist:
  • Radar sensors control unit (N62/1)

f60 30g -
  • Spare
 -
f61 30g 4.0 RDYE Valid for model 204.2 with code (890) EASY-PACK tailgate:
  • Tailgate control control unit (N121/1)
 40
f62 - -
  • Spare
 -
f63 - -
  • Spare
 -
f64 - -
  • Spare
 -
f65 - -
  • Spare
 -
f66 - -
  • Spare
 -
f67 30g 2.5 RDBU Valid for code (810) sound system:
  • Sound system amplifier control unit (N40/3)
 40
f68 30g -
  • Spare
 -
f69 30g -
  • Spare
 -
f70 30g 0.5 RDGN Valid for code (470) Tire pressure monitor (standard):
  • Tire pressure monitor control unit (N88)
 5
f71 15R 1.5 PKYE Valid for code (301) ashtray package/smoker package:
  • Front cigarette lighter with ashtray illumination (R3)
 15
f72 30g 1.5 PKGN Valid for model 204.2:
  • Cargo area connector box (X58/4)
 15
f73 30g -
  • Spare
 -
f74 30 1.5 RD Valid for code (889) Keyless Go:
  • Keyless Go control unit (N69/5)
 15
f75 30 -
  • Spare
 -
f76 30g RDGN 1.5
  • Vehicle interior power outlet (X58/1)
 15
f77 30g 0.5 PKBK Valid for code (494) USA version:
  • Weight Sensing System (WSS) control unit (N110)
 7.5
f78 30g -
  • Spare
 -
f79 30g 0.5 RD Valid for code (230) Exclusive parking assist:
  • Radar sensors control unit (N62/1)
 7.5
f80 30g -
  • Spare
 -
f81 30g 0.5 RDWH Valid for code (518) Media interface:
  • Media interface control unit (N125/1)
 7.5
f82 30g -
  • Spare
 -
f83 15R 0, 5 BKGN Valid for code (498) Japanese version:
  • Electronic Toll Collection control unit (A50/3)
 7.5
    0.75 BKYE Valid for code (359) TELE AID emergency call system:
  • Emergency call system control unit (N123/4)

f84 30 0.5 RDVT
0.5 RDBU		 Valid for code (536) SIRIUS satellite radio:
  • Satellite digital audio radio (SDAR) control unit (N87/5)
 7.5
    0.5 RDBU Valid for code (537) Digital radio
  • Digital Audio Broadcasting control unit (N87/3)

    0.5 RDBU Valid for code (498) Japanese version:
  • Backup camera control unit (N66/2)

f85 30g 0.75 RDBU Valid for code (498) Japanese version:
  • TV tuner control unit (N143)
 7.5
f86 30g -
  • Spare
 -
f87 30 0.75 RDBU Valid for code (359) TELE AID emergency call system:
  • Emergency call system control unit (N123/4)
 7.5
