Fuse assignment of front prefuse box (204.0 /2 up to Year 8) - GF54.15-P-1256-07CW

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 /2 up to Model Year 8

Front prefuse

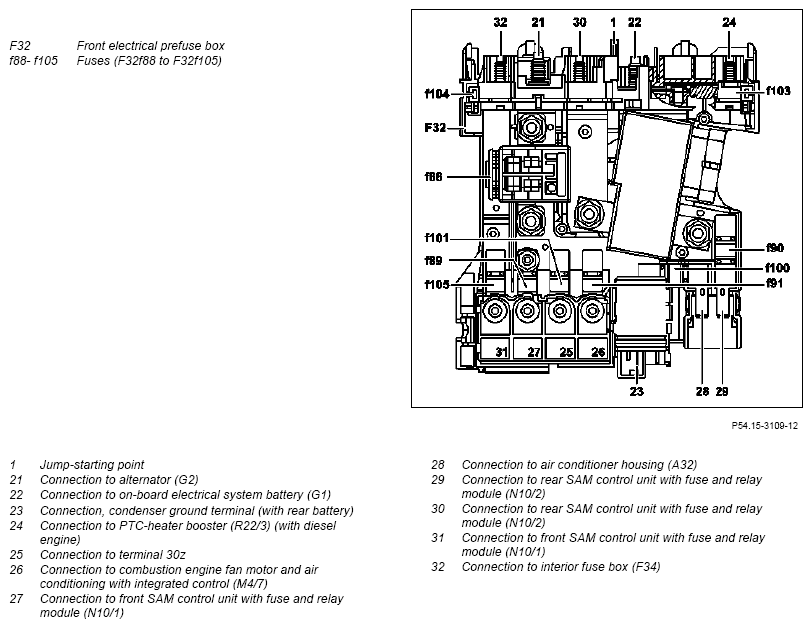

Fig 1: Identifying Front Pre-Fuse Box Fuse Assignments

Courtesy of MERCEDES-BENZ USA

Pin assignment

Fuse	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
f88	30	35, 0 BK	Alternator (G2)	400
f89	30	16.0 RD	Front SAM control unit with fuse and relay module (N10/1)	125
f90	30	6.0 RD	Rear SAM control unit with fuse and fuse and relay module (N10/2)	40
f91	30	10.0 RD	Combustion engine fan motor and air conditioning with integrated control (M4/7)	80
f100	30	4.0 RD	Air conditioner housing (A32)	40
f101	30	16.0 RD	Valid for gasoline engine: Front SAM control unit with fuse and relay module (N10/1)	60
f102	30	-	Spare	-
f103	30	16.0 RD	Valid for diesel engine: PTC heater booster (R22/3)	150
f104	30g	10.0 RD	Interior fuse box (F34)	70
f105	30g	16.0 RD	Front SAM control unit with fuse and relay module (N10/1)	100
f106	30g	16.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	150
f107	30	-	Spare	-
f108	30	-	Spare	-
f109	30	-	Spare	-
f110	30	-	Spare	-
