Location and assignment of line and plug connectors, interior compartment, right - GF00.19-P-1000-05FAA

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2014 Mercedes-Benz C63 AMG, 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, and 2011 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

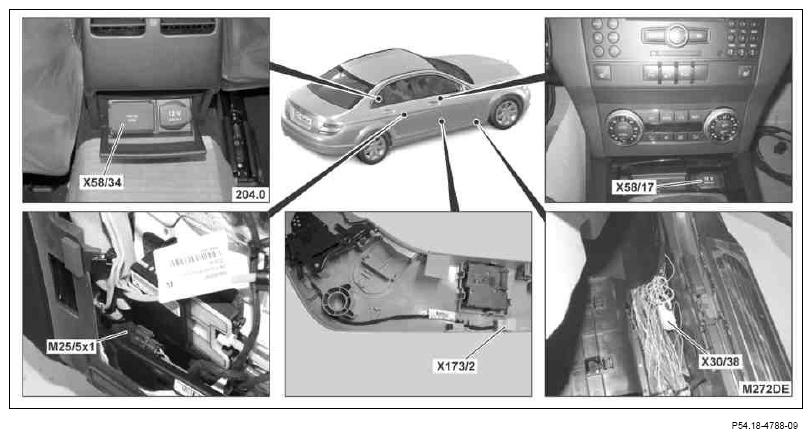

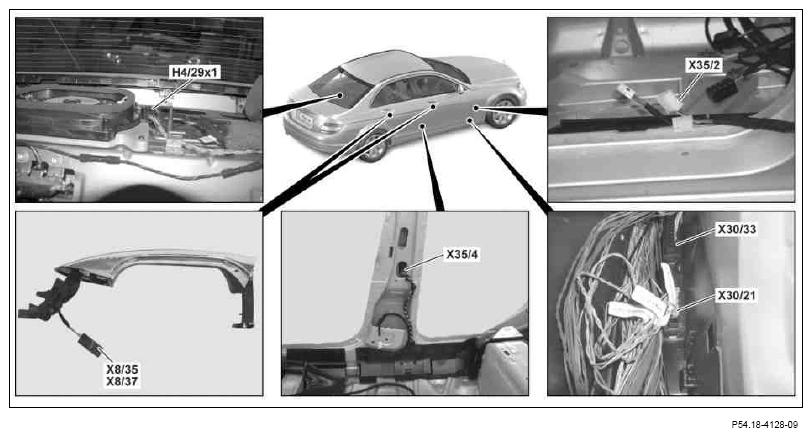

Fig 1: Assignment Of Interior Compartment Line And Plug Connectors - Right (1 Of 9)

Courtesy of MERCEDES-BENZ USA

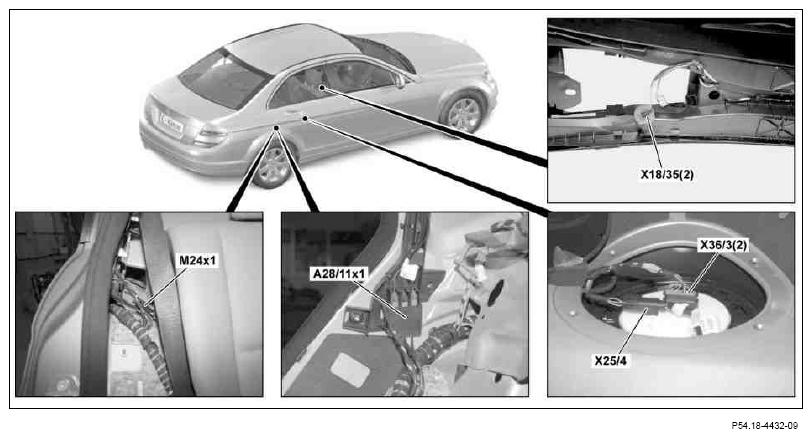

Fig 2: Assignment Of Interior Compartment Line And Plug Connectors - Right (2 Of 9)

Courtesy of MERCEDES-BENZ USA

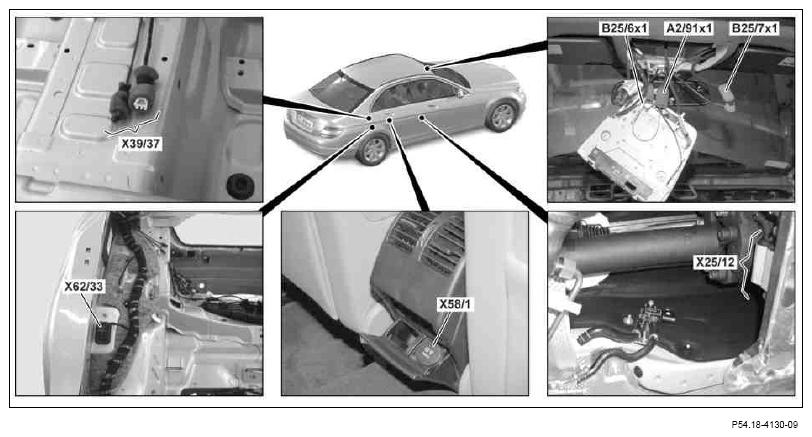

Fig 3: Assignment Of Interior Compartment Line And Plug Connectors - Right (3 Of 9)

Courtesy of MERCEDES-BENZ USA

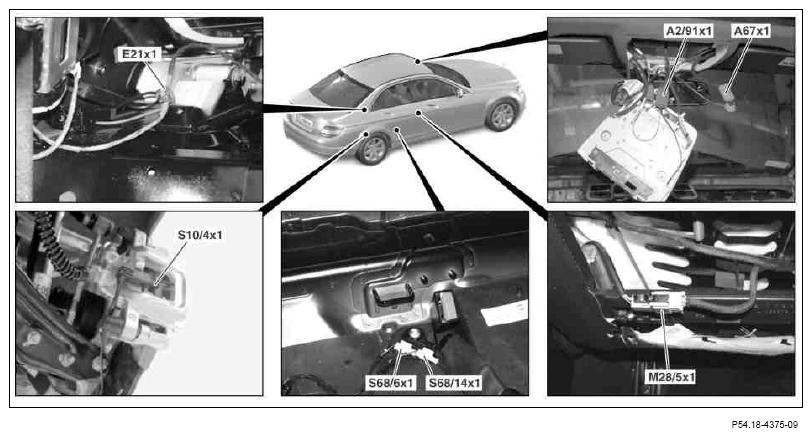

Fig 4: Assignment Of Interior Compartment Line And Plug Connectors - Right (4 Of 9)

Courtesy of MERCEDES-BENZ USA

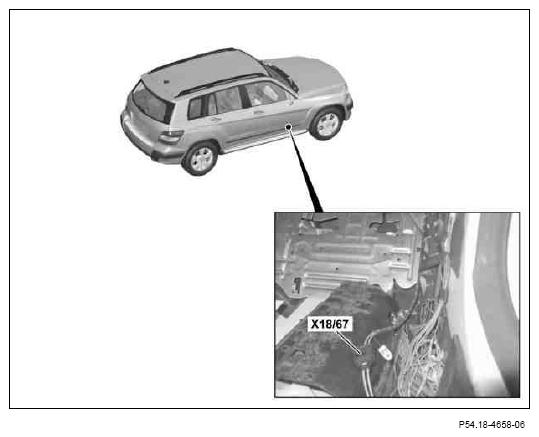

Fig 5: Assignment Of Interior Compartment Line And Plug Connectors - Right (5 Of 9)

Courtesy of MERCEDES-BENZ USA

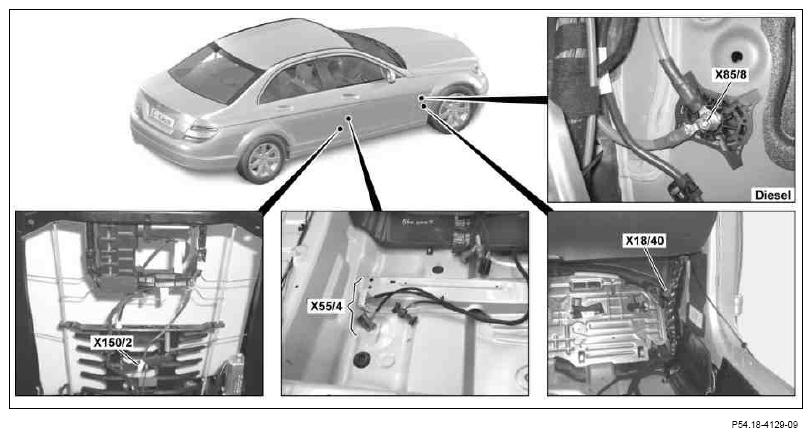

Fig 6: Assignment Of Interior Compartment Line And Plug Connectors - Right (6 Of 9)

Courtesy of MERCEDES-BENZ USA

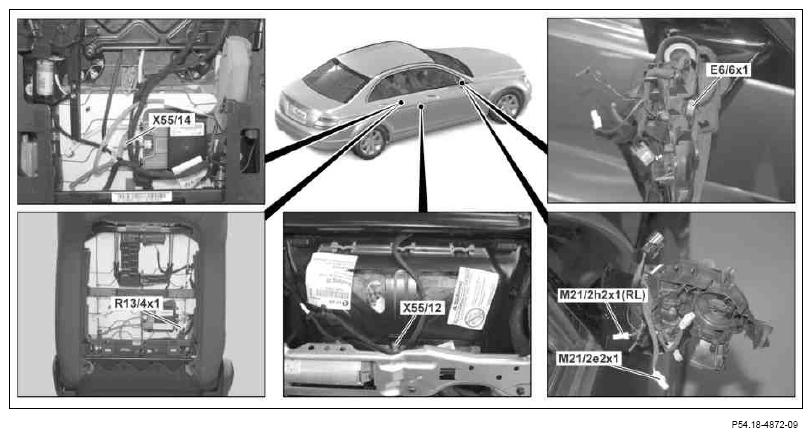

Fig 7: Assignment Of Interior Compartment Line And Plug Connectors - Right (7 Of 9)

Courtesy of MERCEDES-BENZ USA

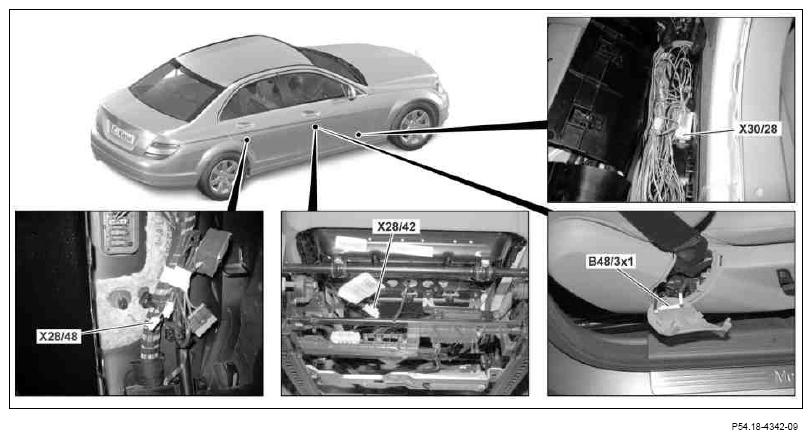

Fig 8: Assignment Of Interior Compartment Line And Plug Connectors - Right (8 Of 9)

Courtesy of MERCEDES-BENZ USA

Fig 9: Assignment Of Interior Compartment Line And Plug Connectors - Right (9 Of 9)

Courtesy of MERCEDES-BENZ USA
