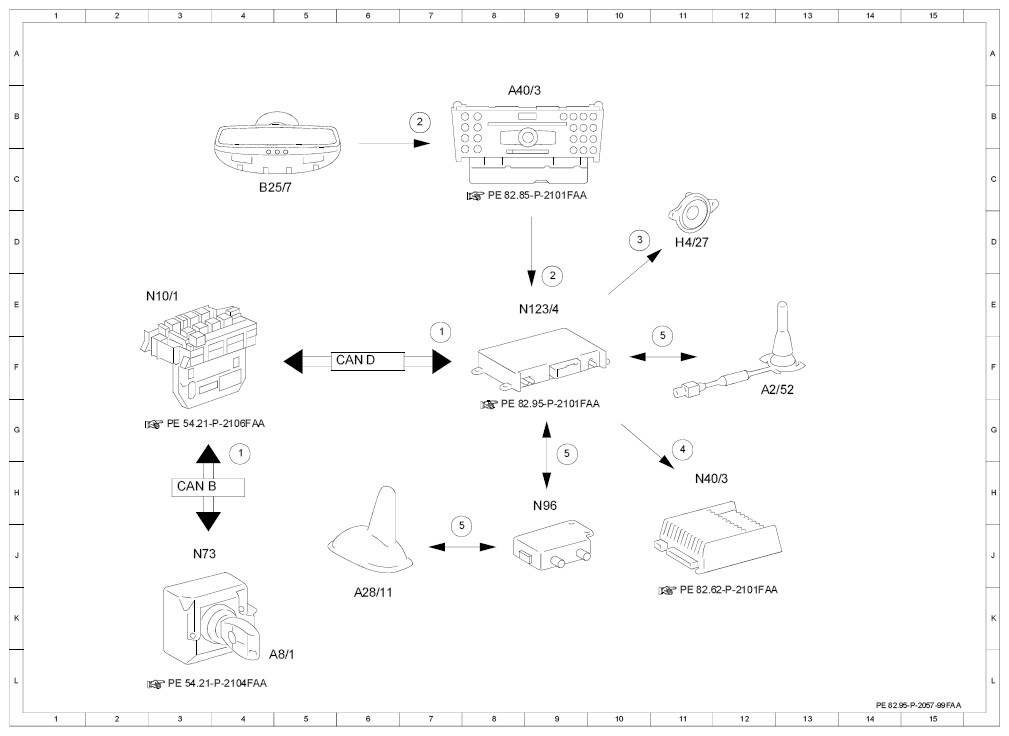

TELEAID voice connection electrical function schematic - PE82.95-P-2057-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (512) COMAND APS with DVD changer with CODE (359) TELE AID emergency call system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada with CODE (810) Sound system up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4 H |
| 1 | Circuit 15, status | 7 F |
| 2 | Voice input, signal | 7 B |
| 2 | Voice input, signal | 9 E |
| 3 | Voice output, signal | 10 D |
| 4 | Mute, signal | 11 G |
| 5 | Telephone, signal | 7 J |
| 5 | Telephone, signal | 9 H |
| 5 | Telephone, signal | 11 F |
| A2/52 | Emergency call system antenna | 12 G |
| A28/11 | Multifunction antenna | 6 K |
| A40/3 | COMAND control unit | 8 B |
| A8/1 | Transmitter key | 4 L |
| B25/7 | Voice control system microphone | 4 C |
| CAN B | Interior CAN | 3 H |
| CAN D | Diagnostic CAN | 5 F |
| H4/27 | Center instrument panel speaker | 11 D |
| N10/1 | Front SAM control unit with fuse and relay module | 2 E |
| N123/4 | Emergency call system control unit | 8 E |
| N40/3 | Sound system amplifier control unit | 11 H |
| N73 | Electronic ignition switch control unit | 3 J |
| N96 | Frequency switchover control unit | 9 H |
