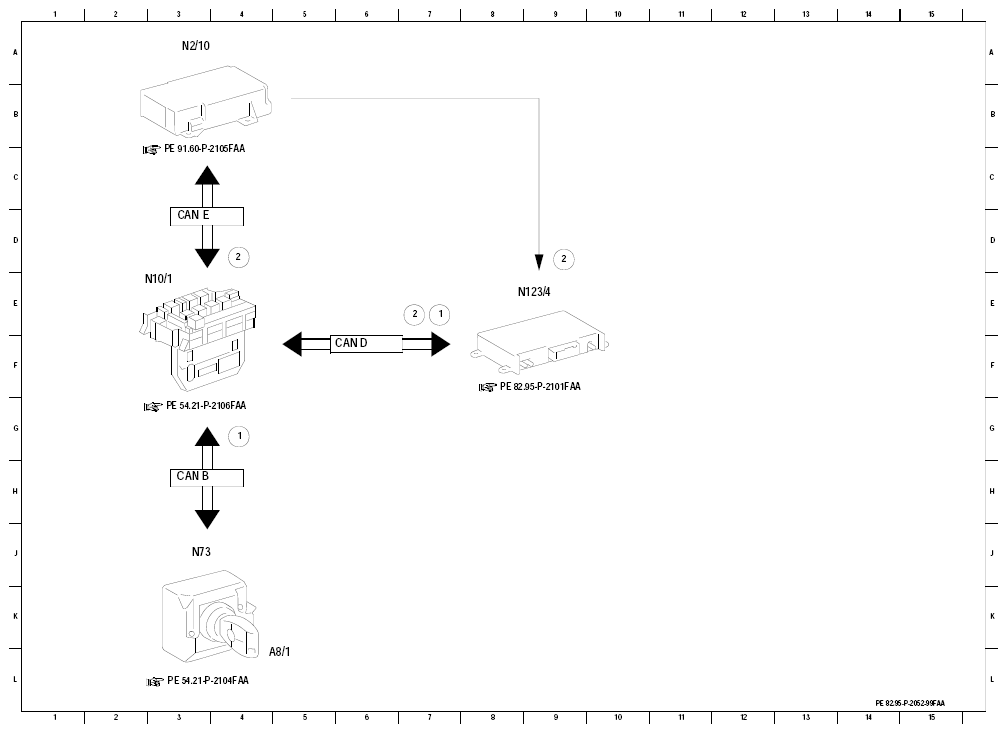

Electrical function schematic, TELEAID restraint system data - PE82.95-P-2052-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (359) TELE AID emergency call system up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4 G |
| 1 | Circuit 15, status | 7 E |
| 2 | Crash, signal | 4 D |
| 2 | Crash, signal | 7 E |
| 2 | Crash, signal | 9 D |
| A8/1 | Transmitter key | 4 L |
| CAN B | Interior CAN | 3 H |
| CAN D | Diagnostic CAN | 5 F |
| CAN E | Chassis CAN | 3 D |
| N10/1 | Front SAM control unit with fuse and relay module | 2 E |
| N123/4 | Emergency call system control unit | 8 E |
| N2/10 | Supplemental restraint system control unit | 3 A |
| N73 | Electronic ignition switch control unit | 3 J |
