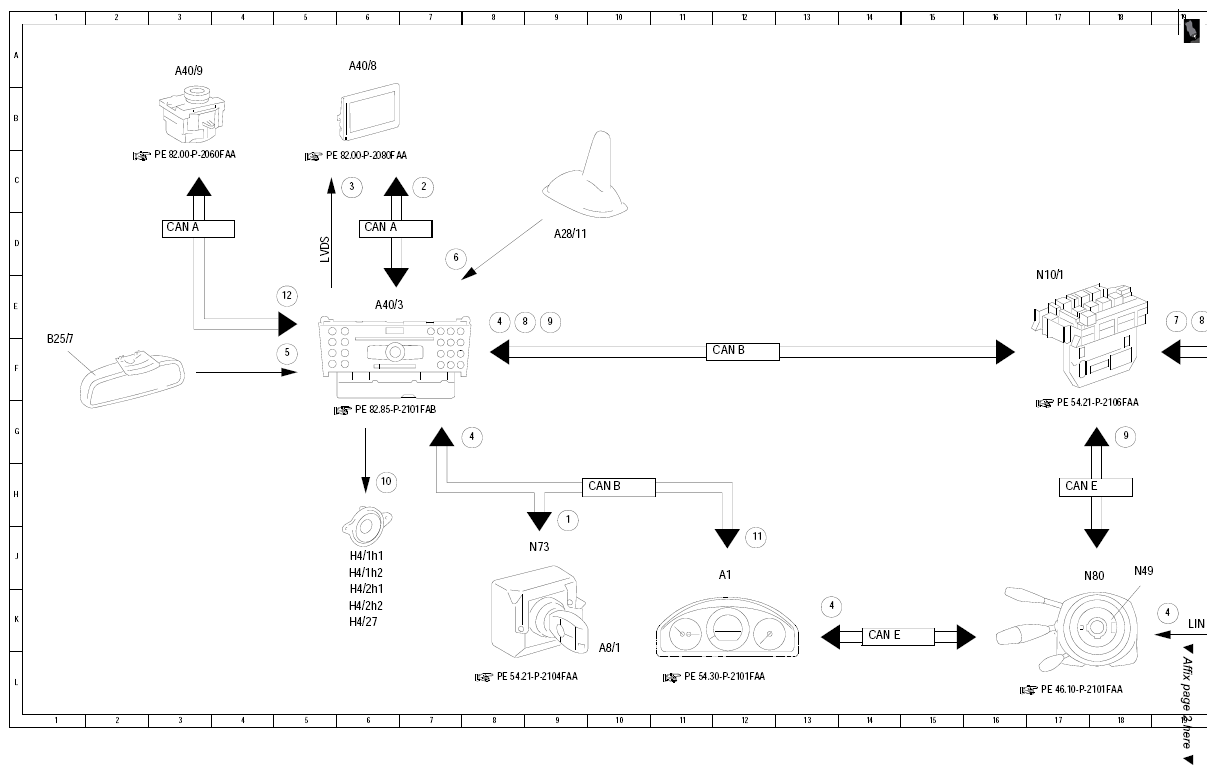

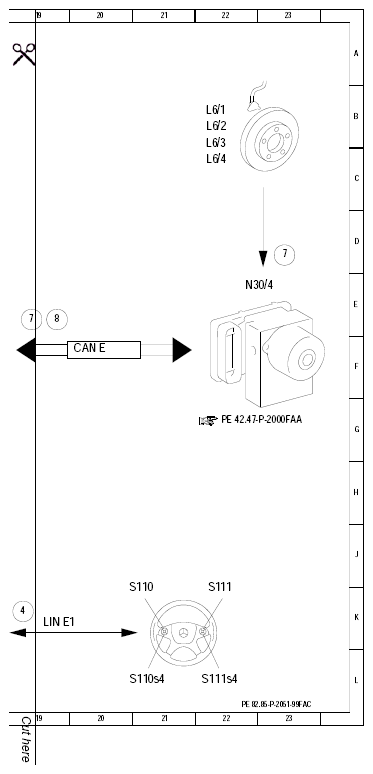

Electrical function schematic for navigation system - PE82.85-P-2051-99FAC
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (498) Japan version up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9 J |
| 10 | Speaker, actuation | 6 H |
| 11 | Instrument cluster, message | 12 J |
| 12 | Audio/COMAND controller, request | 5 E |
| 2 | Switch-on request, signal | 7 C |
| 3 | Audio/COMAND display, signal | 6 C |
| 4 | Multifunction steering wheel button group, signal | 8 G |
| 4 | Multifunction steering wheel button group, signal | 8 E |
| 4 | Multifunction steering wheel button group, signal | 13 K |
| 4 | Multifunction steering wheel button group, signal | 19 K |
| 5 | Voice input, signal | 5 F |
| 6 | GPS, signal | 7 D |
| 7 | Wheel speed, signal | 19 E |
| 7 | Wheel speed, signal | 23 D |
| 8 | Wheel rotation direction, signal | 8 E |
| 8 | Wheel rotation direction, signal | 19 E |
| 9 | Steering angle, signal | 9 E |
| 9 | Steering angle, signal | 18 G |
| A1 | Instrument cluster | 12 J |
| A28/11 | Multifunction antenna | 9 D |
| A40/3 | COMAND control unit | 6 E |
| A40/8 | Audio/COMAND display | 6 A |
| A40/9 | Audio/COMAND control panel | 3 A |
| A8/1 | Transmitter key | 10 L |
| B25/7 | Voice control system microphone | 1 F |
| CAN A | Telematics CAN | 3 D |
| CAN A | Telematics CAN | 6 D |
| CAN B | Interior CAN | 9 H |
| CAN B | Interior CAN | 11 F |
| CAN E | Chassis CAN | 14 K |
| CAN E | Chassis CAN | 17 H |
| CAN E | Chassis CAN | 20 F |
| H4/1h1 | Left front door tweeter | 6 J |
| H4/1h2 | Left front door bass speaker | 6 J |
| H4/27 | Center instrument panel speaker | 6 K |
| H4/2h1 | Right front door tweeter | 6 K |
| H4/2h2 | Right front door bass speaker | 6 K |
| L6/1 | Left front axle RPM sensor | 22 B |
| L6/2 | Right front axle RPM sensor | 22 B |
| L6/3 | Left rear axle RPM sensor | 22 C |
| L6/4 | Right rear axle RPM sensor | 22 C |
| LIN E1 | Steering LIN | 19 K |
| N10/1 | Front SAM control unit with fuse and relay module | 17 E |
| N30/4 | Electronic Stability Program control unit | 22 E |
| N49 | Steering angle sensor | 18 J |
| N73 | Electronic ignition switch control unit | 9 J |
| N80 | Steering column module control unit | 17 J |
| S110 | Left multifunction steering wheel button group | 20 K |
| S110s4 | "Back" and voice control system OFF button | 20 L |
| S111 | Right multifunction steering wheel button group | 22 K |
| S111s4 | Voice control system ON button | 22 L |
