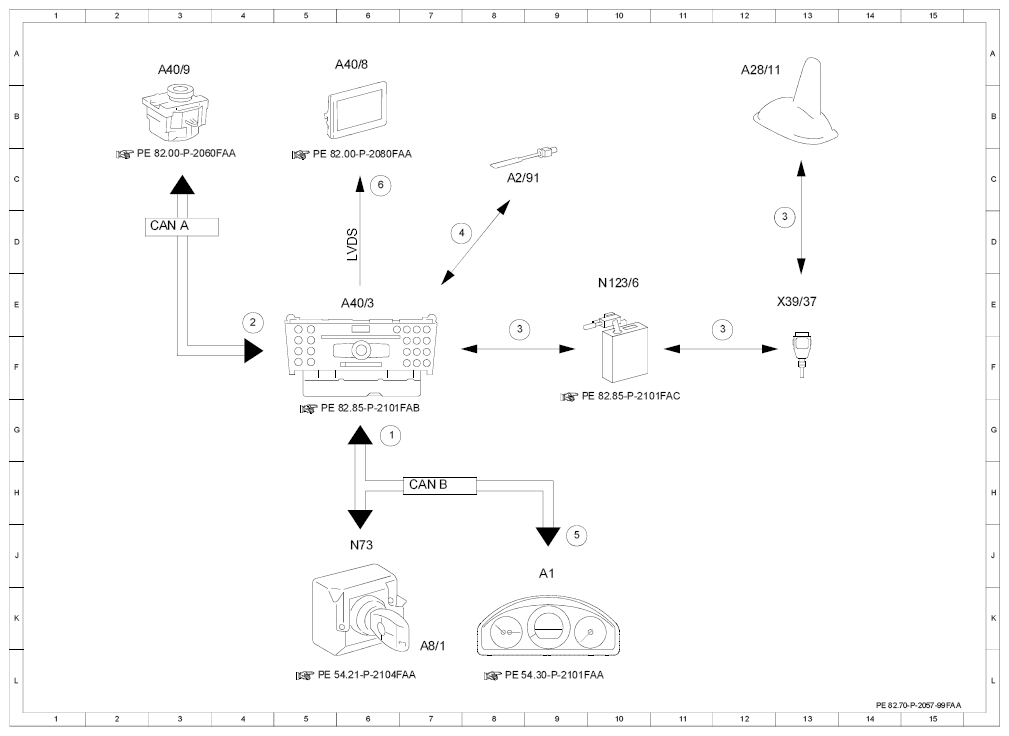

Electrical function schematic for mobile phone, email, Internet - PE82.70-P-2057-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (498) Japan version up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6 G |
| 2 | Audio/COMAND controller, request | 4 E |
| 3 | Telephone, signal | 8 F |
| 3 | Telephone, signal | 12 F |
| 3 | Telephone, signal | 13 D |
| 4 | Bluetooth, signal | 7 D |
| 5 | Instrument cluster, message | 9 J |
| 6 | Audio/COMAND display, message | 6 C |
| A1 | Instrument cluster | 9 J |
| A2/91 | Bluetooth antenna | 8 C |
| A28/11 | Multifunction antenna | 12 A |
| A40/3 | COMAND control unit | 6 E |
| A40/8 | Audio/COMAND display | 5 A |
| A40/9 | Audio/COMAND control panel | 3 A |
| A8/1 | Transmitter key | 7 L |
| CAN A | Telematics CAN | 2 D |
| CAN B | Interior CAN | 7 H |
| N123/6 | Communication control unit | 10 E |
| N73 | Electronic ignition switch control unit | 6 J |
| X39/37 | Mobile phone electrical connector | 13 E |
