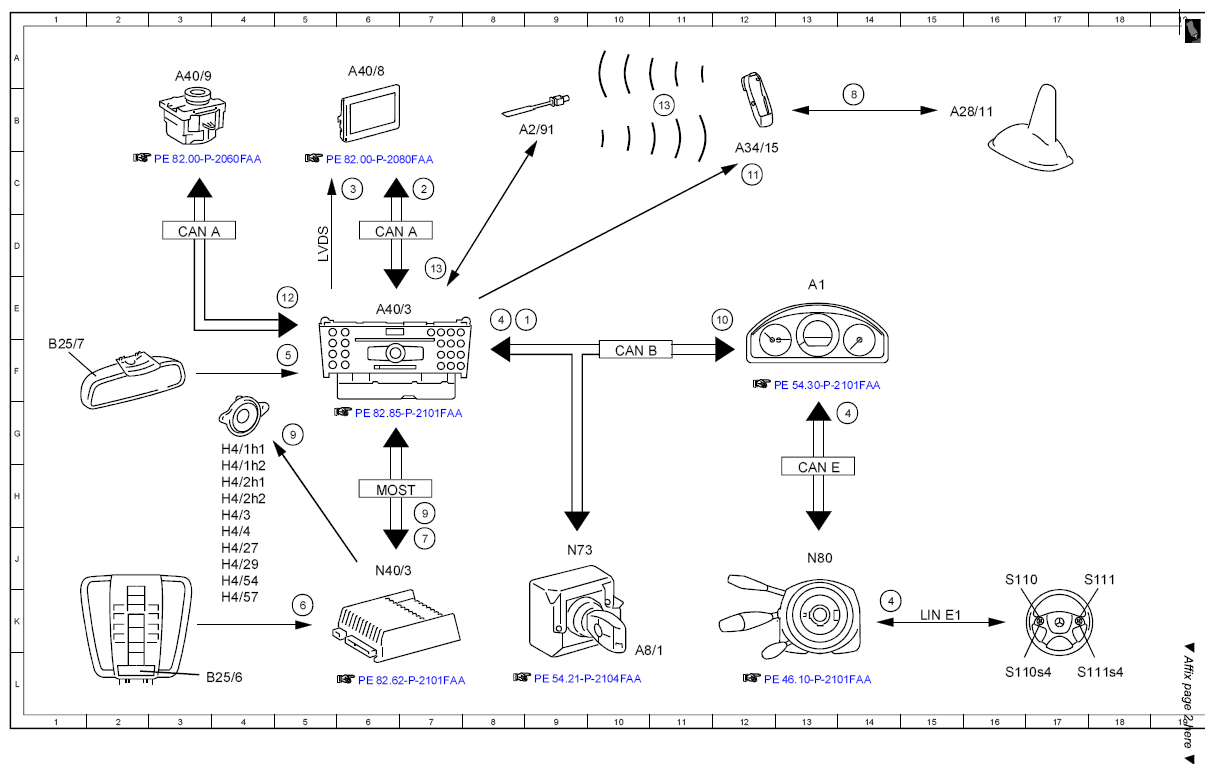

Electrical function schematic for information and communications system - PE82.85-P-2052-97FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (512) COMAND APS with DVD changer with CODE (810) Sound system with CODE (386) Preinstallation for telephone "cell phone", UPCI [UHI] system except CODE
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8E |
| 10 | Instrument cluster, message | 12E |
| 11 | Mobile phone switch-on request, signal | 12C |
| 12 | Audio/COMAND controller, request | 5E |
| 13 | Bluetooth, signal | 7D |
| 13 | Bluetooth, signal | 11B |
| 2 | Switch-on request, signal | 7C |
| 3 | Audio/COMAND display, signal | 6C |
| 4 | Multifunction steering wheel button group, signal | 8E |
| 4 | Multifunction steering wheel button group, signal | 14K |
| 4 | Multifunction steering wheel button group, signal | 14G |
| 5 | Voice input, signal | 5F |
| 6 | Vehicle interior noise level, signal | 5K |
| 7 | Sound system amplifier, actuation | 7J |
| 8 | Telephone, signal | 14B |
| 9 | Speaker, actuation | 5G |
| 9 | Speaker, actuation | 7H |
| A1 | Instrument cluster | 13E |
| A2/91 | Bluetooth antenna | 8B |
| A28/11 | Multifunction antenna | 15B |
| A34/15 | Mobile phone holder | 12C |
| A40/3 | COMAND control unit | 6E |
| A40/8 | Audio/COMAND display | 6A |
| A40/9 | Audio/COMAND control panel | 3A |
| A8/1 | Transmitter key | 10L |
| B25/6 | Sound system microphone | 3L |
| B25/7 | Voice control system microphone | 1F |
| CAN A | Telematics CAN | 3D |
| CAN A | Telematics CAN | 6D |
| CAN B | Interior CAN | 10F |
| CAN E | Chassis CAN | 13H |
| H4/1h1 | Left front door tweeter | 4G |
| H4/1h2 | Left front door bass speaker | 4H |
| H4/27 | Center instrument panel speaker | 4J |
| H4/29 | Bass speaker | 4J |
| H4/2h1 | Right front door tweeter | 4H |
| H4/2h2 | Right front door bass speaker | 4H |
| H4/3 | Left rear door speaker | 4H |
| H4/4 | Right rear door speaker | 4J |
| H4/54 | Left rear surround speaker | 4J |
| H4/57 | Right rear surround speaker | 4K |
| LIN E1 | Steering LIN | 15K |
| MOST | Media Oriented System Transport | 6H |
| N40/3 | Sound system amplifier control unit | 6J |
| N73 | Electronic ignition switch control unit | 9J |
| N80 | Steering column module control unit | 13J |
| S110 | Left multifunction steering wheel button group | 16J |
| S110s4 | "Back" and voice control system OFF button | 16L |
| S111 | Right multifunction steering wheel button group | 17J |
| S111s4 | Voice control system ON button | 17L |
