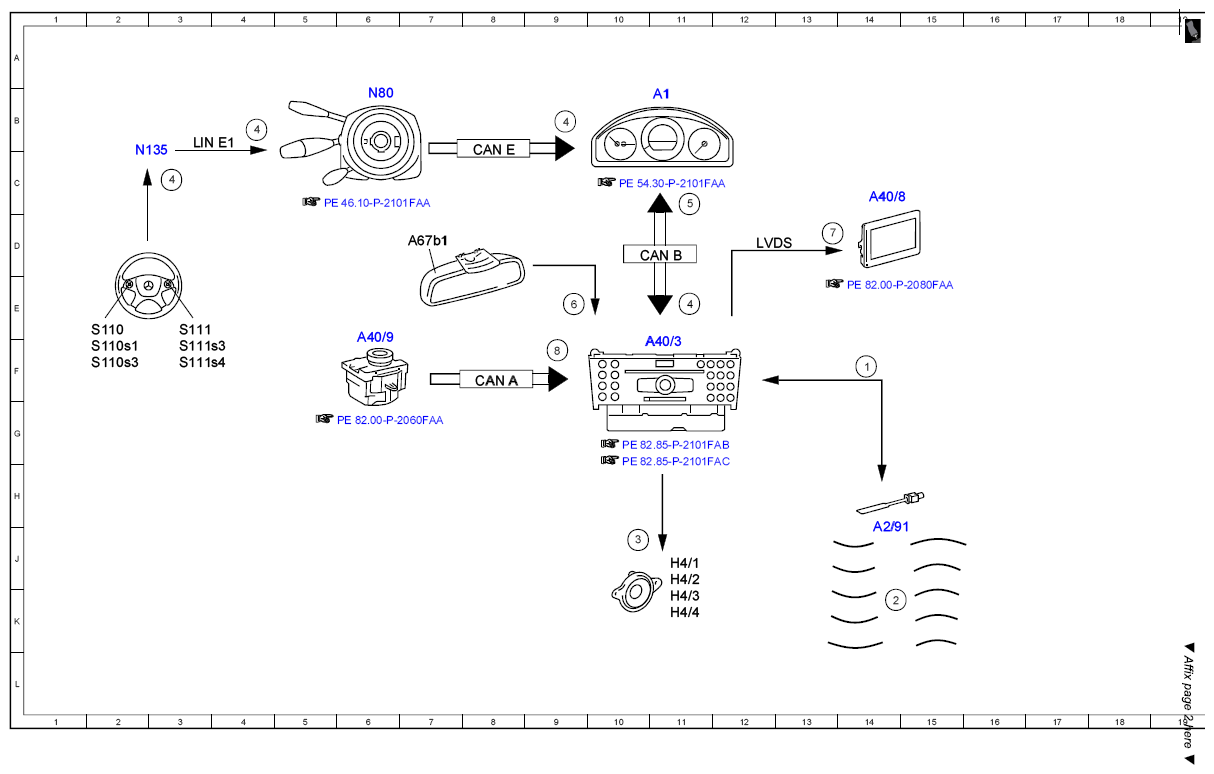

Electrical function schematic for cellular phone - PE82.70-P-2051-97FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (498) Japan version as of model year 2011 up to model year 2012 /YoM 10, /model refinement package 11 MODEL 204.2 with CODE (527) COMAND APS
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 14F |
| 2 | Bluetooth, signal | 14K |
| 3 | Voice output, signal | 10J |
| 4 | Multifunction steering wheel button group, signal | 3C |
| 4 | Multifunction steering wheel button group, signal | 4B |
| 4 | Multifunction steering wheel button group, signal | 11E |
| 4 | Multifunction steering wheel button group, signal | 9B |
| 5 | Instrument cluster, message | 11C |
| 6 | Voice input, signal | 9E |
| 7 | Audio/COMAND display, message | 13D |
| 8 | Audio/COMAND controller, request | 9F |
| A1 | Instrument cluster | 11B |
| A2/91 | Bluetooth antenna | 14J |
| A40/3 | COMAND control unit | 10F |
| A40/8 | Audio/COMAND display | 14C |
| A40/9 | Audio/COMAND control panel | 6F |
| A67b1 | Hands-free system microphone | 7D |
| CAN A | Telematics CAN | 8F |
| CAN B | Interior CAN | 11D |
| CAN E | Chassis CAN | 8C |
| H4/1 | Left front door speaker | 11J |
| H4/2 | Right front door speaker | 11J |
| H4/3 | Left rear door speaker | 11K |
| H4/4 | Right rear door speaker | 11K |
| LIN E1 | Steering LIN | 3B |
| LVDS | Low voltage differential signal | 12D |
| N135 | Steering wheel electronics | 2C |
| N80 | Steering column module control unit | 6B |
| S110 | Left multifunction steering wheel button group | 2E |
| S110s1 | Scroll forward/back button | 2F |
| S110s3 | System selection button | 2F |
| S111 | Right multifunction steering wheel button group | 3E |
| S111s3 | Accept/terminate phone call button | 3F |
| S111s4 | Voice control system ON button | 3F |
