Electrical function schematic for TELEAID status indication - PE82.95-P-2059-99FAA

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204 with CODE (359) TELE AID emergency call system with CODE (512) COMAND APS with DVD changer up to model year 08/YoM 07

Code:	Designation:	Position:
1	Circuit 15, status	7 H
1	Circuit 15, status	11 F
2	Instrument cluster, message	4 E
2	Instrument cluster, message	7 C
2	Instrument cluster, message	8 F
3	Audio/COMAND display, signal	4 B
3	Audio/COMAND display, signal	7 D
3	Audio/COMAND display, signal	9 F
4	Status indication, signal	11 C
4	Status indication, signal	14 D
5	GPS, signal	14 F
5	GPS, signal	16 G
6	Telephone, signal	12 H
6	Telephone, signal	14 K
6	Telephone, signal	15 E
A1	Instrument cluster	3 F
A2/5	Global positioning system antenna splitter	16 F
A2/52	Emergency call system antenna	16 D
A28/11	Multifunction antenna	16 L
A40/3	COMAND control unit	6 A
A40/8	Audio/COMAND display	2 A
A8/1	Transmitter key	8 L
CAN B	Interior CAN	3 D
CAN B	Interior CAN	6 D
CAN B	Interior CAN	6 H
CAN D	Diagnostic CAN	9 F
Code 414	Electric glass tilting/sliding roof	10 A
N10/1	Front SAM control unit with fuse and relay module	6 E
N123/4	Emergency call system control unit	12 E
N70	Overhead control panel control unit	12 B
N70/3	Overhead control panel electronics	12 B
N73	Electronic ignition switch control unit	7 J
N96	Frequency switchover control unit	12 K
S93/3	Emergency call system button	13 C
S93/6s1	MB-Info button	13 C
S93/6s2	TELEDIAGNOSIS button	10 C
U111	Valid for overhead control panel without CAN	10 A

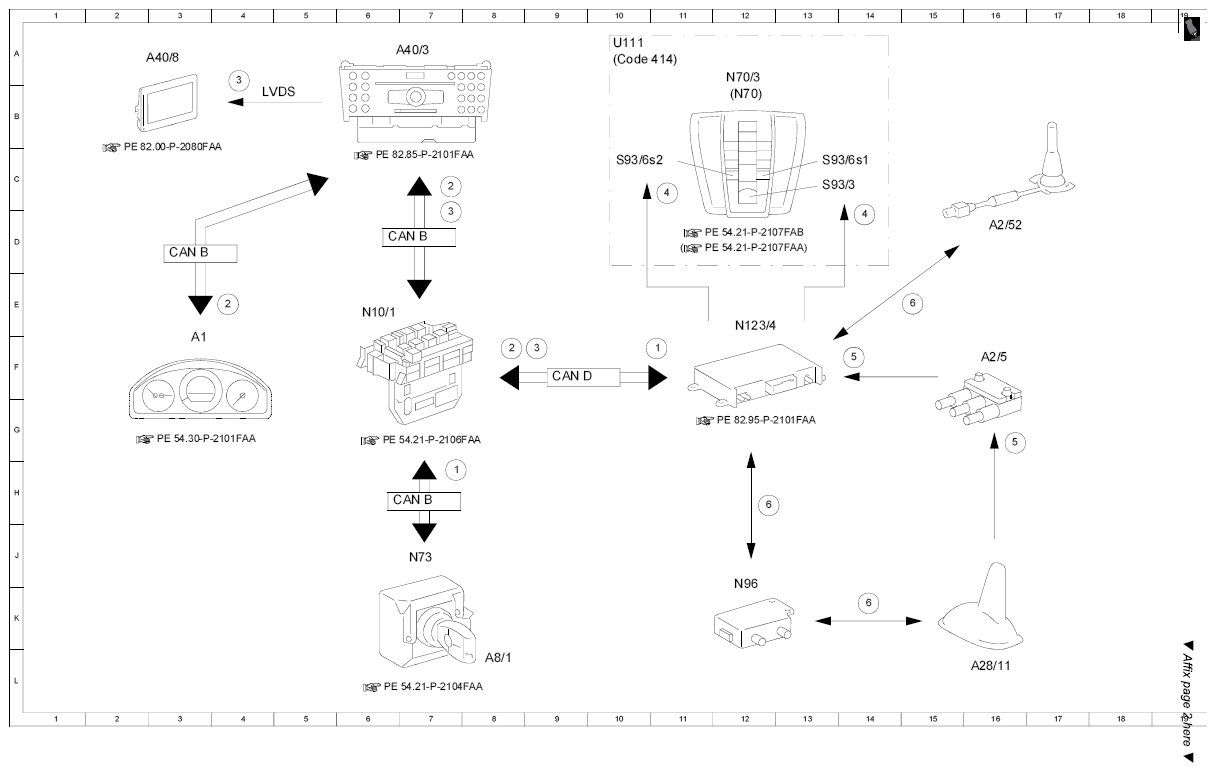

Fig 1: TELEAID Status Indication - Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: TELEAID Status Indication - Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
