Electrical function schematic for TELEAID status indication - PE82.95-P-2059-97FAA

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204 with CODE (359) TELE AID emergency call system with CODE (512) COMAND APS with DVD changer up to model year 08/YoM 07

Code:	Designation:	Position:
1	Circuit 15, status	7H
1	Circuit 15, status	11F
2	Instrument cluster, message	4E
2	Instrument cluster, message	8F
2	Instrument cluster, message	7C
3	Audio/COMAND display, signal	7D
3	Audio/COMAND display, signal	4A
3	Audio/COMAND display, signal	9F
4	Status indication, signal	11C
4	Status indication, signal	14D
5	GPS, signal	16G
5	GPS, signal	14F
6	Telephone, signal	14K
6	Telephone, signal	12H
6	Telephone, signal	15E
A1	Instrument cluster	3F
A2/5	Global positioning system antenna splitter	16F
A2/52	Emergency call system antenna	16D
A28/11	Multifunction antenna	16L
A40/3	COMAND control unit	6A
A40/8	Audio/COMAND display	2A
A8/1	Transmitter key	8L
CAN B	Interior CAN	7H
CAN B	Interior CAN	3D
CAN B	Interior CAN	7D
CAN D	Diagnostic CAN	9F
Code 414	Electric glass tilting/sliding roof	10A
N10/1	Front SAM control unit with fuse and relay module	6E
N123/4	Emergency call system control unit	12E
N70	Overhead control panel control unit	12B
N70/3	Overhead control panel electronics	12A
N73	Electronic ignition switch control unit	7J
N96	Frequency switchover control unit	12K
S93/3	Emergency call system button	13C
S93/6s1	MB-Info button	13C
S93/6s2	TELEDIAGNOSIS button	10C
U111	Valid for overhead control panel without CAN	10A

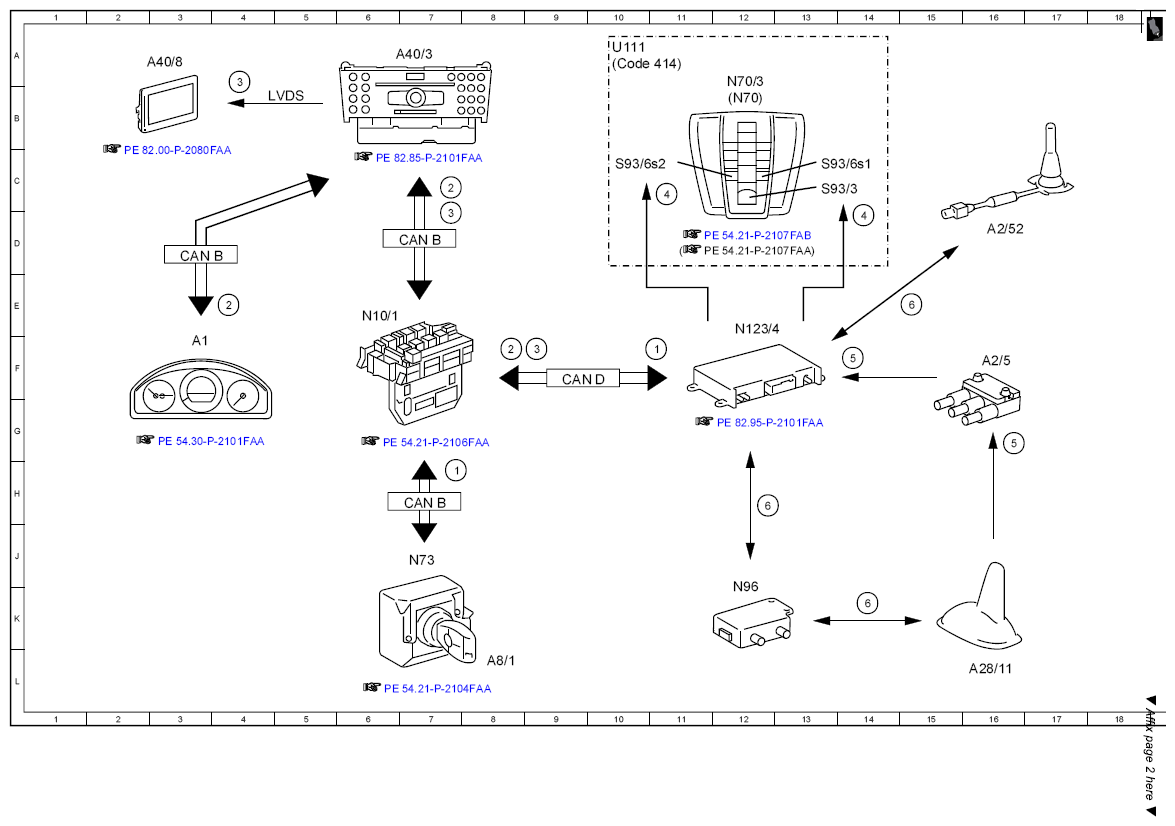

Fig 1: TELEAID Status Indication - Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: TELEAID Status Indication - Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
