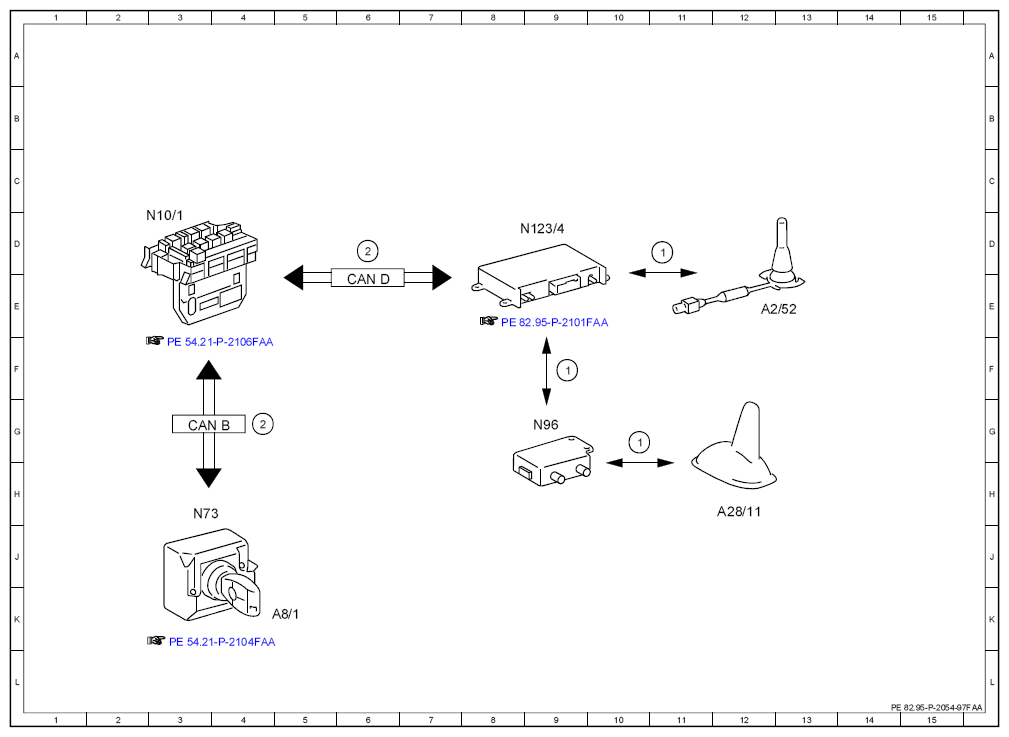

Electrical function schematic for TELEAID remote door lock - PE82.95-P-2054-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (359) TELE AID emergency call system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada up to model year 08/YoM 07 comfort telephony
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 9F |
| 1 | Telephone, signal | 10G |
| 1 | Telephone, signal | 11D |
| 2 | Lock or unlock, signal | 6D |
| 2 | Lock or unlock, signal | 4G |
| A2/52 | Emergency call system antenna | 12E |
| A28/11 | Multifunction antenna | 12H |
| A8/1 | Transmitter key | 5K |
| CAN B | Interior CAN | 3G |
| CAN D | Diagnostic CAN | 6E |
| N10/1 | Front SAM control unit with fuse and relay module | 3D |
| N123/4 | Emergency call system control unit | 9D |
| N73 | Electronic ignition switch control unit | 3H |
| N96 | Frequency switchover control unit | 9G |
