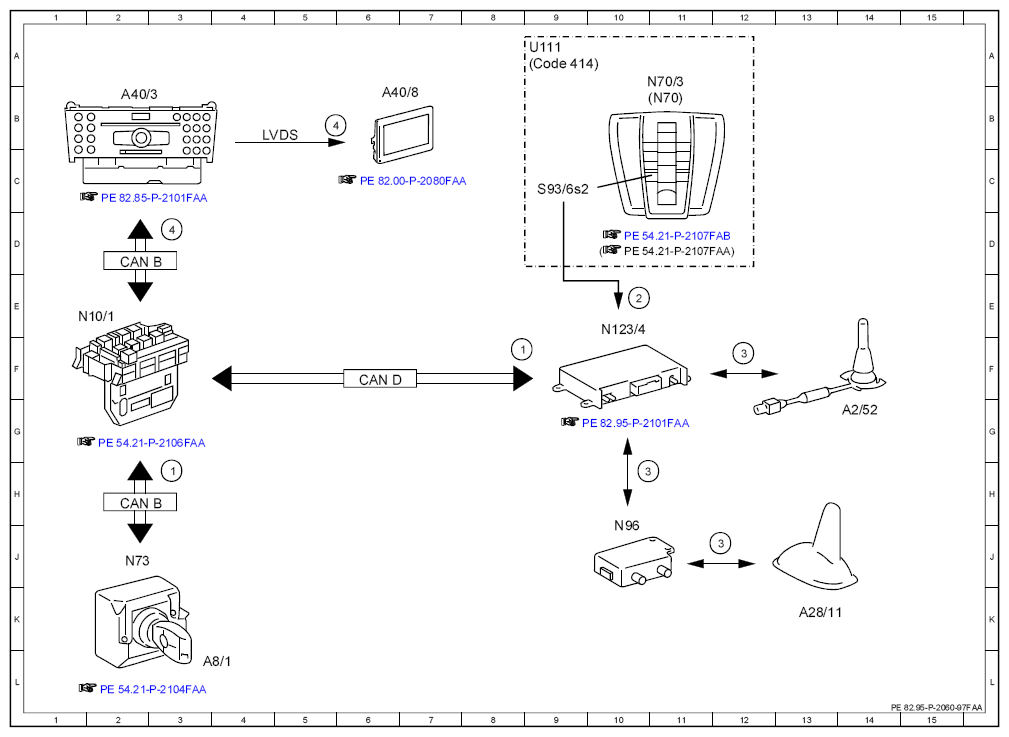

Electrical function schematic for TELEAID TELEDIAGNOSIS - PE82.95-P-2060-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (359) TELE AID emergency call system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada up to model year 08/YoM 07 comfort telephony
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 3H |
| 1 | Circuit 15, status | 8F |
| 2 | TELEDIAGNOSIS, signal | 10E |
| 3 | Telephone, signal | 12J |
| 3 | Telephone, signal | 10H |
| 3 | Telephone, signal | 12F |
| 4 | Audio/COMAND display, signal | 5B |
| 4 | Audio/COMAND display, signal | 3D |
| A2/52 | Emergency call system antenna | 14G |
| A28/11 | Multifunction antenna | 13K |
| A40/3 | COMAND control unit | 2B |
| A40/8 | Audio/COMAND display | 6B |
| A8/1 | Transmitter key | 3L |
| CAN B | Interior CAN | 2H |
| CAN B | Interior CAN | 2D |
| CAN D | Diagnostic CAN | 6F |
| Code 414 | Electric glass tilting/sliding roof | 9A |
| N10/1 | Front SAM control unit with fuse and relay module | 2E |
| N123/4 | Emergency call system control unit | 10E |
| N70 | Overhead control panel control unit | 11B |
| N70/3 | Overhead control panel electronics | 11A |
| N73 | Electronic ignition switch control unit | 2J |
| N96 | Frequency switchover control unit | 10J |
| S93/6s2 | TELEDIAGNOSIS button | 9C |
| U111 | Valid for overhead control panel without CAN | 9A |
