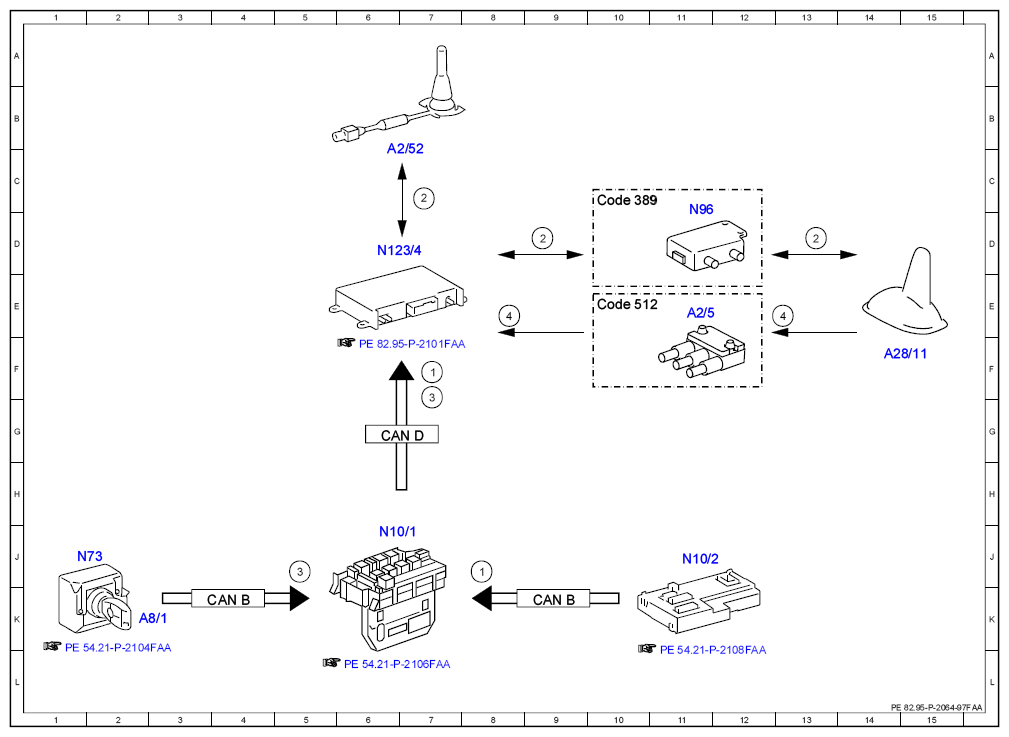

Electrical function diagram for vehicle location, function - PE82.95-P-2064-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/3/9 as of model year 2013 with CODE 348 (Emergency call/assistant system) MODEL 204.0 as of model year 2009 up to model year 2013 with CODE 359 (TELE AID emergency call system) MODEL 204.3/9 up to model year 2013 with CODE 359
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 7F |
| 1 | ATA [EDW] alarm, signal | 8J |
| 2 | Telephone, signal | 7C |
| 2 | Telephone, signal | 13D |
| 2 | Telephone, signal | 9D |
| 3 | Circuit 15, status | 5J |
| 3 | Circuit 15, status | 7G |
| 4 | Navigation data, signal | 13E |
| 4 | Navigation data, signal | 8E |
| A2/5 | Global positioning system antenna splitter | 11E |
| A2/52 | Emergency call system antenna | 6C |
| A28/11 | Multifunction antenna | 14F |
| A8/1 | Transmitter key | 2K |
| CAN B | Interior CAN | 4K |
| CAN B | Interior CAN | 9K |
| CAN D | Diagnostic CAN | 6G |
| Code | 389 Mobile phone preinstallation with universal interface, USA/Canada | 10C |
| Code | 512 COMAND APS with DVD changer | 10E |
| N10/1 | Front SAM control unit with fuse and relay module | 6J |
| N10/2 | Rear SAM control unit with fuse and relay module | 11J |
| N123/4 | Emergency call system control unit | 6D |
| N73 | Electronic ignition switch control unit | 1J |
| N96 | Frequency switchover control unit | 11D |
