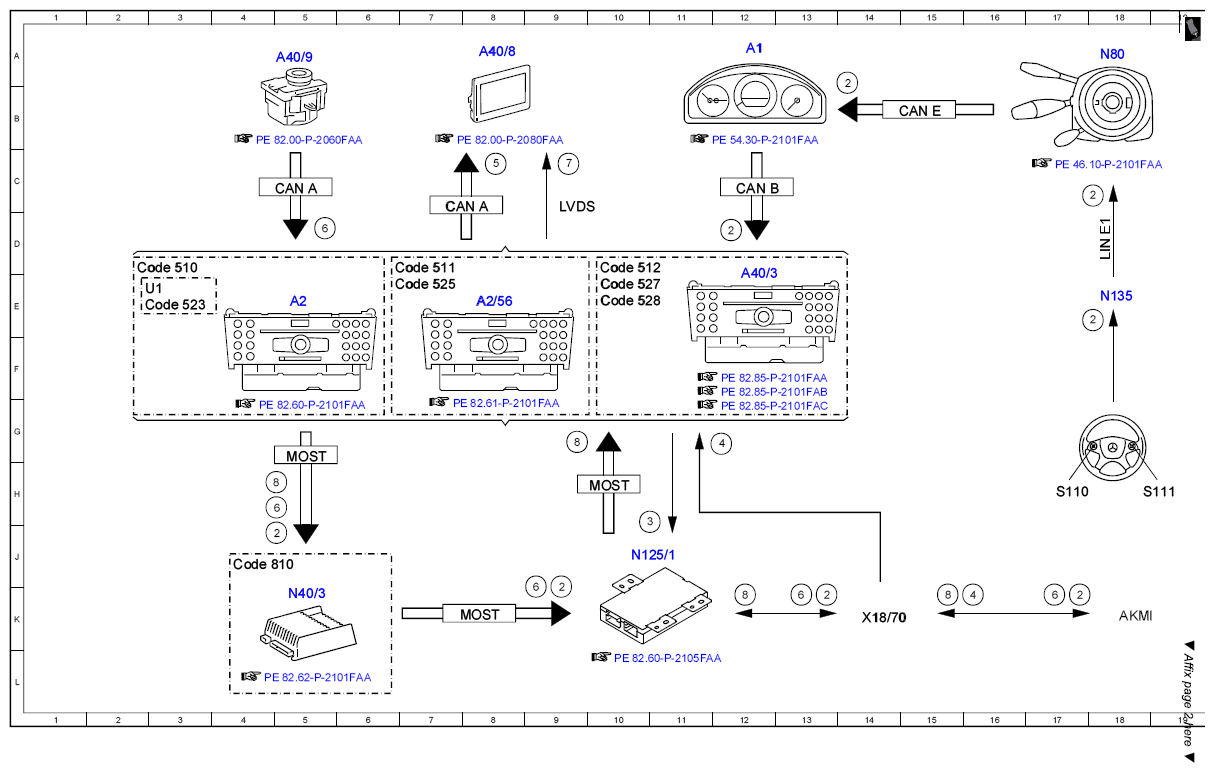

Electrical function diagram for media interface, function - PE82.85-P-2059-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 with CODE (518) Media interface as of model year 2009 up to model year 2012 /YoM 08, /model refinement package 11 MODEL 204.9 with CODE (518) Media interface up to model year 2013 /facelift 12
| Code: | Designation: | Position: |
|---|---|---|
| 2 | Multifunction steering wheel button group, signal | 5J |
| 2 | Multifunction steering wheel button group, signal | 9K |
| 2 | Multifunction steering wheel button group, signal | 12D |
| 2 | Multifunction steering wheel button group, signal | 13K |
| 2 | Multifunction steering wheel button group, signal | 17K |
| 2 | Multifunction steering wheel button group, signal | 18E |
| 2 | Multifunction steering wheel button group, signal | 18C |
| 2 | Multifunction steering wheel button group, signal | 14B |
| 3 | Wake-up, signal | 10J |
| 4 | Video, signal | 12G |
| 4 | Video, signal | 16K |
| 5 | Switch-on request, signal | 8C |
| 6 | Audio/COMAND controller, request | 5H |
| 6 | Audio/COMAND controller, request | 9K |
| 6 | Audio/COMAND controller, request | 5D |
| 6 | Audio/COMAND controller, request | 13K |
| 6 | Audio/COMAND controller, request | 17K |
| 7 | Audio/COMAND display, signal | 9C |
| 8 | Audio, signal | 5H |
| 8 | Audio, signal | 12K |
| 8 | Audio, signal | 9G |
| 8 | Audio, signal | 15K |
| A1 | Instrument cluster | 12A |
| A2 | Radio | 5E |
| A2/56 | Radio with auto pilot system | 8E |
| A40/3 | COMAND control unit | 12E |
| A40/8 | Audio/COMAND display | 8A |
| A40/9 | Audio/COMAND control panel | 5A |
| CAN A | Telematics CAN | 5C |
| CAN A | Telematics CAN | 7C |
| CAN B | Interior CAN | 12C |
| CAN E | Chassis CAN | 15B |
| Code 510 | Audio 20 with CD changer | 2D |
| Code 511 | Audio 50 APS incl. DVD changer | 6D |
| Code 512 | COMAND APS with DVD changer | 10D |
| Code 523 | Audio 20 radio | 2E |
| Code 525 | Audio 50 APS radio (CD) | 6E |
| Code 527 | COMAND APS | 10E |
| Code 528 | COMAND with DVD changer | 10E |
| Code 810 | Sound system | 4J |
| LIN E1 | Steering LIN | 18D |
| LVDS | Low voltage differential signal | 9C |
| MOST | Media Oriented System Transport | 5G |
| MOST | Media Oriented System Transport | 8K |
| MOST | Media Oriented System Transport | 10H |
| N125/1 | Media interface control unit | 10J |
| N135 | Steering wheel electronics | 18E |
| N40/3 | Sound system amplifier control unit | 5K |
| N80 | Steering column module control unit | 18A |
| S110 | Left multifunction steering wheel button group | 17H |
| S111 | Right multifunction steering wheel button group | 18H |
| U1 | Valid for USA | 2E |
| X18/70 | Media interface electrical connector | 14K |
