R/P lock, location/task/design/function - GF27.60-P-5103NT
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9 in MODEL 209, 211, 219

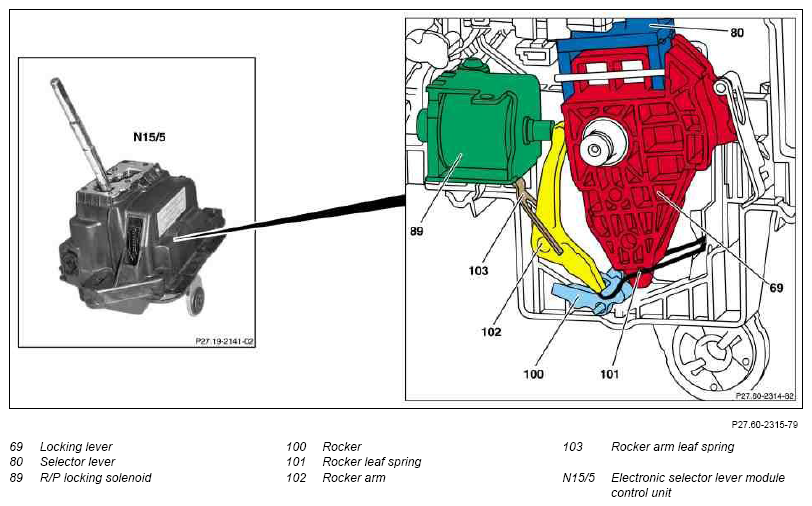

| R/P lock, location | The R/P lock is integrated in the electronic selector lever module control unit (N15/5). | |
| R/P lock, task | Depending on the condition the R/P lock prevents shifting out of selector lever position "P" or changing into selector lever position "R" from "N". | |
| R/P lock, design | The R/P lock consists of:
|
|
| R/P lock, function | GF27.60-P-5103-04NT |
