Remove/install rear seat backrest side padding - AR91.12-P-1710P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3 except CODE (P98) Black Series

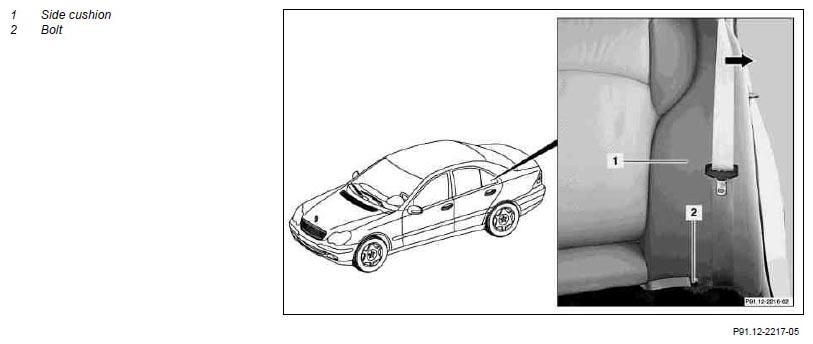

Fig 1: Identifying Side Cushion And Bolt

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Release rear seat cushion and fold forwards
2	Unscrew bolt (2)
3	Pull side cushion (1) at the top and remove	See arrow.
4	Install in the reverse order
