Checking recognition of actuation state of emergency/compact tensioning retractors - AR91.40-P-0612A

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209 as of 1.6.98

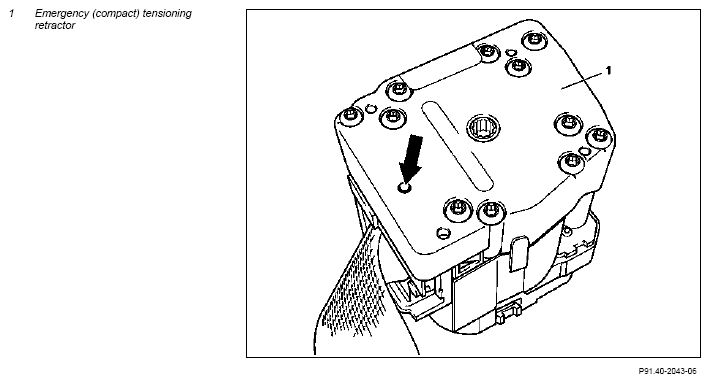

Fig 1: Locating First Tensioning Retractor Ignition Squib

Courtesy of MERCEDES-BENZ USA

	Inspect
1	Check emergency (compact) tensioning retractor electrically	STAR diagnosis: ↓
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2.1	If the first ignition squib has been fired electrically and the red pin (arrow) is visible, all three ignition squibs have fired
	Notes on disposal of emergency tensioning retractors	All models	OS91.00-P-0001-01A
2.2	If the first ignition squib has been fired electrically and the red pin (arrow) is not visible, not all three ignition squibs have fired	Further work: ↓
	Notes on disposal of airbag and emergency tensioning retractors	All models	OS91.40-P-0612-01A
2.3	Electric ignition squib has not fired	Further work: ↓
		Ignition of removed emergency tensioning retractors	AR91.40-P-0611-02A
		Ignition of removed emergency tensioning retractors when ignition device is not present	AR91.40-P-0611-05A
