Remove/install paneling belt in rear - AR68.30-P-4782QBS
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 with CODE (P98) Black Series
| Remove/install | ||

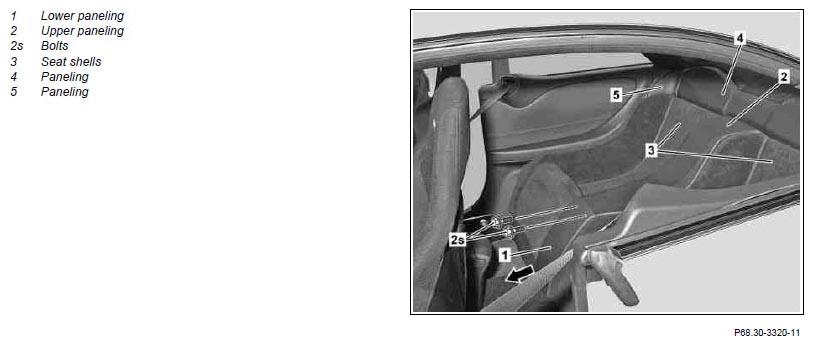

| 1 | Unclip lower paneling (1) and remove; for this purpose, pull toward front at bottom (arrow) | |
| 2 | Unscrew bolts (2s) and remove upper paneling (2) | |
| 3 | Unclip paneling (4) and remove | |
| 4 | Unclip panelings (5) and remove | |
| 5 | Unclip seat shells (3) and remove | |
| 6 | Install in the reverse order |
