Remove/install front floor covering (left) - AR68.20-P-2050P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209

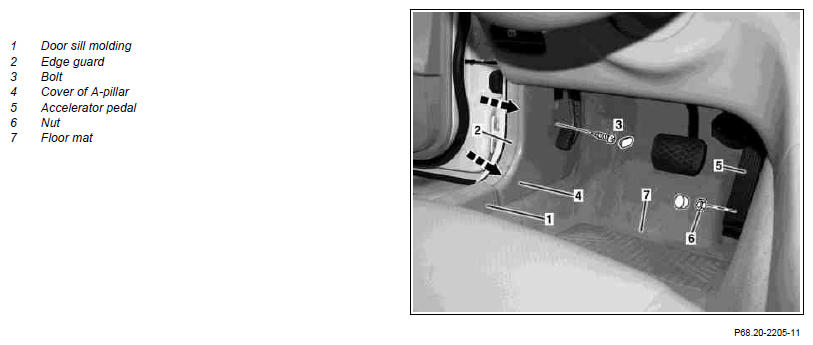

Shown in model 203.0
| Remove/Install | ||
| 1 | Move left front seat all the way back | |
| 2 | Unclip door sill molding (1), remove | |
| 3 | Remove edge guard (2) in area of A-pillar cover (4) | |
| 4 | Unclip cap from A-pillar cover (4) | |
| 5 | Unscrew bolt (3) | |
| 6 | Unclip cap from A-pillar cover (4), remove | |
| 7 | Unclip cap from accelerator pedal (5) | |
| 8 | Unscrew nut (6) and lay accelerator pedal (5) in connected condition to the side | |
| 9 | Lift floor covering (7) at rear, take out | |
| 10 | Install in the reverse order |
