Prepare headliner for installing sound system - AR68.30-P-4300-06Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-02A | Adhesive tape roll, gray Tesa tape, 50 meters 0.3X50, 236 mm | A 001 989 17 85 |
Shown on model 209.3 with code (414a) Electric glass tilting/sliding roof and code (220a) Parktronic system (PTS) and code (882b) Interior monitoring (only with ATA)
- Lay new headliner (1) down on suitable subsurface.
- Place suitable clean spacers, e.g. foamed material or styrofoam pads below new headliner.
Do not use any hard or sharp-edged objects, otherwise covering of new headliner (1) will be damaged.
The foamed material or styrofoam pads prevent the new headliner (1) from sagging when performing the following steps.

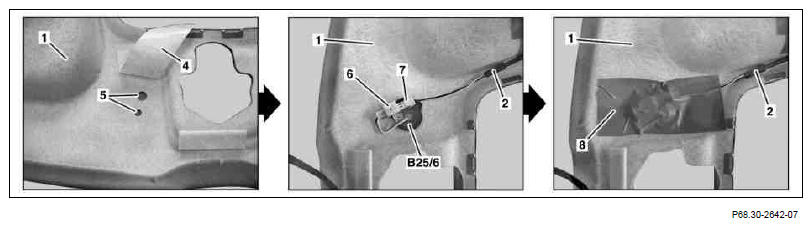

- Remove strips of adhesive tape (4)
- Connect electrical connector (6) for new sound amplifier microphone (B25/6) with electrical connector (7) from new sound system wiring harness (2) and arrest on sound amplifier microphone (B25/6).

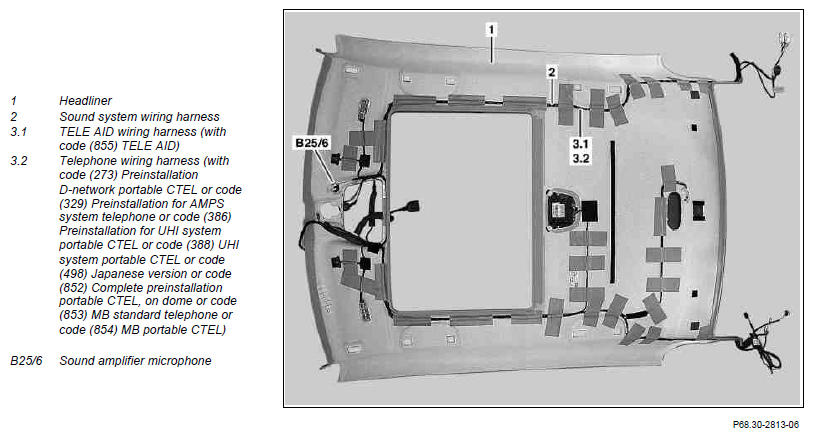

- Align sound amplifier microphone (B25/6) in specified hole pattern (5) on new headliner (1) and glue with approx. 10 cm strips of adhesive tape (8) as shown in figure.
- Route sound system wiring harness (2) and glue onto new headliner (1) with approx. 10 cm long strips of adhesive tape at an interval of approx. 10 cm.
