Prepare headliner for installing Parktronic system warning display in rear - AR68.30-P-4300-04Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1071-02A	Adhesive tape roll, gray Tesa tape, 50 meters 0.3X50, 236 mm	A 001 989 17 85

Shown on model 209.3 with code (414a) Electric glass tilting/sliding roof and code (882b) Interior monitoring (only with ATA)

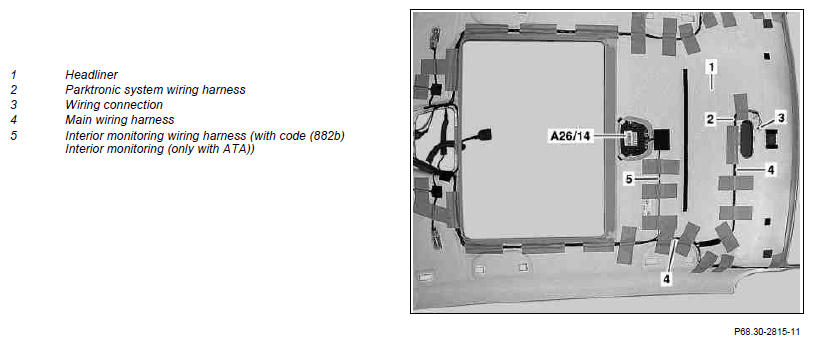

Fig 1: Identifying Headliner & Parktronic System Wiring Harness Components

Courtesy of MERCEDES-BENZ USA

Lay new headliner (1) down on suitable subsurface.
Place suitable clean spacers, e.g. foamed material or styrofoam pads below new headliner.
Do not use any hard or sharp-edged objects, otherwise covering of new headliner (1) will be damaged.

The foamed material or styrofoam pads prevent the new headliner (1) from sagging when performing the following steps.
Route new Parktronic system wiring harness (2) parallel to main wiring harness (4)
The old headliner (1) serves as a template for routing the wiring harness.
Glue new Parktronic system wiring harness (2) onto new headliner with an approx. 10 cm long strip of adhesive tape at a distance of approx. 10 cm.
Do not overcross new Parktronic system wiring harness (2) and main wiring harness (4) and apply sufficient number of strips of tapes, otherwise a short circuit on the headliner can result from chafing.
