Remove/install accelerator pedal - AR30.12-P-1321P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209, 211
MODIFICATION NOTES
| 17.9.03 | Operation step for unclamping ground strap for battery taken away | Step 1 |
| 17.9.03 | Operation step for disconnecting connector on kickdown switch limited | Step 5.1 |
| Remove/install | |||
|---|---|---|---|

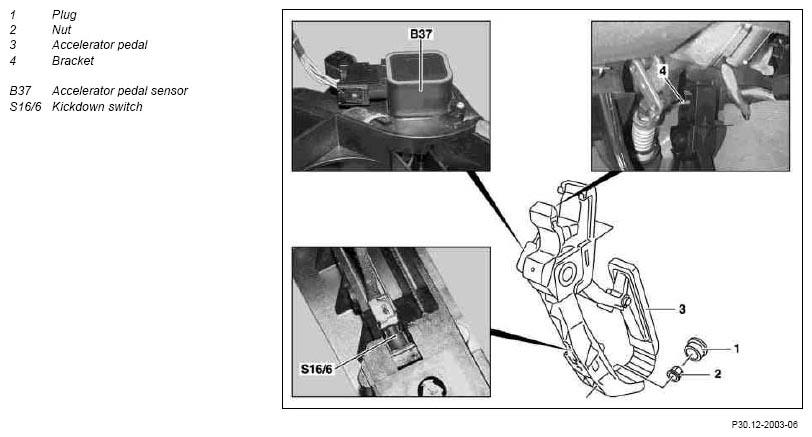

| 1 | Remove plug (1) | ||
| 2 | Unscrew nut (2) | ||
| 3 | Pull out accelerator pedal (3) | ||
| 4 | Unplug electrical connector for pedal value sensor (B37) | ||
| 5 | Unplug electrical connector from kickdown switch (S16/6) | Vehicles with kickdown switch |
|
| 6 | Remove accelerator pedal (3) | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory and erase if required | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
