Remove wheel well - AR62.20-P-1200-21CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

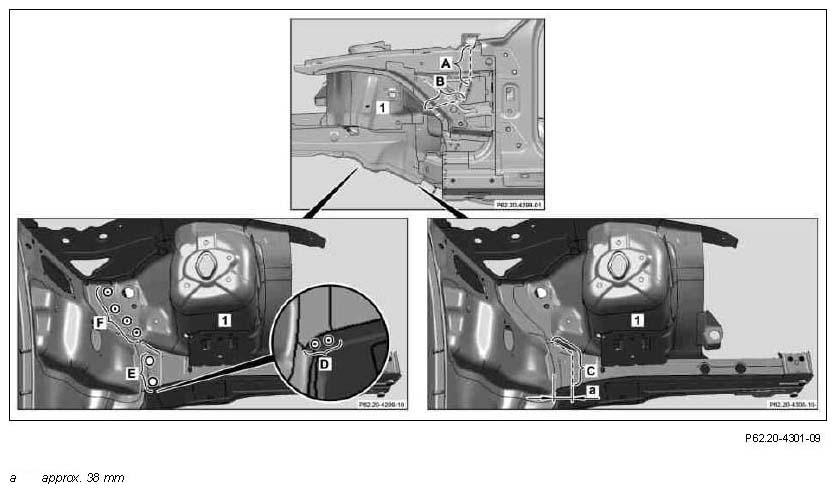

Fig 1: Identifying Front Wheel Well Spot Welds & Separating Points

Courtesy of MERCEDES-BENZ USA

Dimension:

The following operation steps are shown on model 204.0.

Coarsely cut front wheel well (1) at separating points (areas A and B).
Scribe separating point on front wheel well (1) (area C).
Separation point is only needed at left front wheel well (1).
Cut front wheel well (1) at separating point (area C).
Separation point is only needed at left front wheel well (1).
Expose spot welds on front wheel well (1) (areas D, E and F).
Cut out spot welds on front wheel well (1) (areas D and F).
Use Ø 6.7 mm to drill out spot welds on front wheel well (1) (area E).
Expose spot welds on front wheel well (1) (areas G, H, I, and J).
Cut out spot welds on front wheel well (1) (areas G and H).
Use Ø 6.7 mm to drill out spot welds on front wheel well (1) (areas I and J).

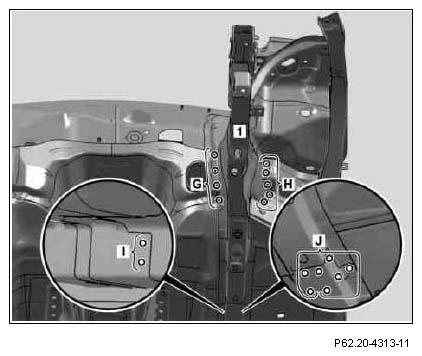

Fig 2: Identifying Front Wheel Well Spot Welds (Areas G, H, I, And J)
Courtesy of MERCEDES-BENZ USA

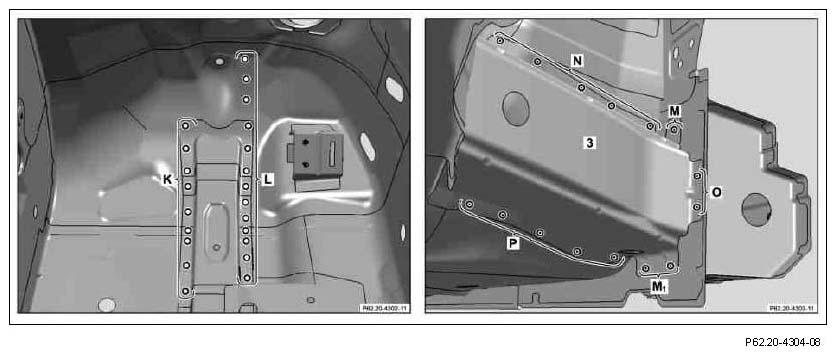

Fig 3: Identifying Spot Welds In Inner Area Of Main Floor Panel
Courtesy of MERCEDES-BENZ USA
Expose spot welds in inner area of main floor panel (areas K and L).
Use Ø 6.7 mm to drill out spot welds in inner area of main floor panel (areas K and L).
Perform following operation step 14 only on model 207, 212 and model 218.
Expose spot welds on crossmember (3) (areas M, M₁ , N, O and P).
Cut out spot welds on crossmember (3) (areas M, M₁ , N, O and P).
Heat front wheel well (1) in crosshatched areas.
Crosshatched areas can be bonded.

Fig 4: Identifying Front Wheel Well Heating Areas
Courtesy of MERCEDES-BENZ USA
Heat crossmember (3) in cross-hatched area.
Cross-hatched area is bonded.
Remove damaged front wheel well (1) and crossmember (3).

Fig 5: Identifying Crossmember Heating Area
Courtesy of MERCEDES-BENZ USA

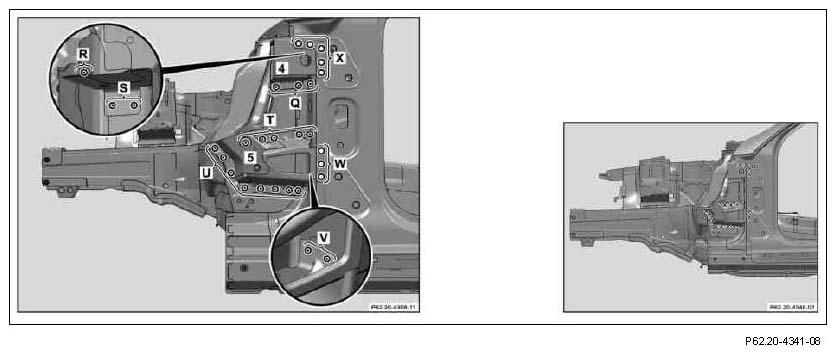

Fig 6: Identifying Upper Front Longitudinal Member Sections Spot Welds & Heating Areas
Courtesy of MERCEDES-BENZ USA
Expose spot welds on upper front longitudinal member sections (4 and 5) (areas Q, R, S, T, U, V, W and X).
Cut out spot welds on upper front longitudinal member sections (4 and 5) (areas Q, R, S, T, U and V).
Drill through spot welds on top front longitudinal member sections (4 and 5) to Ø 6.7 mm (areas W and X).
Heat upper front longitudinal member sections (4 and 5) in cross-hatched areas.
Cross-hatched areas are bonded.
Remove upper front longitudinal member sections (4 and 5).

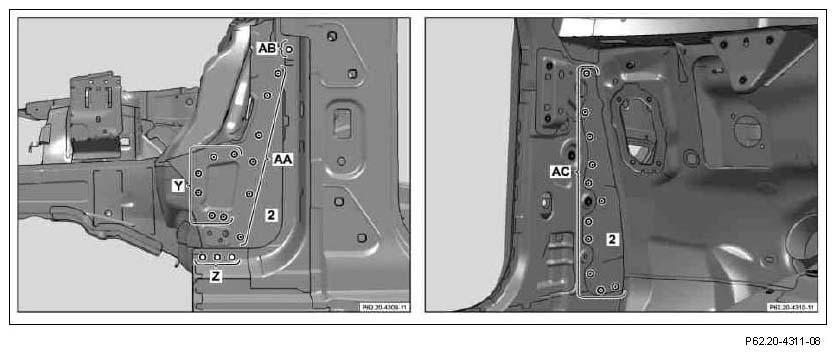

Fig 7: Identifying Spot Welds On End Plate (Areas Y, Z, AA, AB And AC)
Courtesy of MERCEDES-BENZ USA
Expose spot welds on end plate (2) (areas Y, Z, AA, AB and AC).
Cut out spot welds on end plate (2) (areas Y, AA and AC).
Use Ø 6.7 mm to drill out spot welds on end plate (2) (areas Z and AB).
Heat end plate (2) in cross-hatched areas.
Cross-hatched areas are bonded.
Remove end plate (2).
Grind mating surfaces on body down to bare metal in cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.

Observe pretreatment of bonding surfaces (areas AD and AE).

Bonding surface in area AE only on model 207, 212 and model 218.
Remove shavings and drill chips.

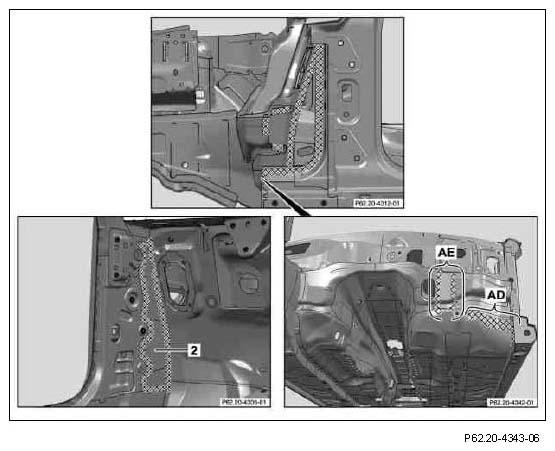

Fig 8: Identifying End Plate Heating Areas
Courtesy of MERCEDES-BENZ USA
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (areas AD and AE).

Bonding surface in area AE only on model 207, 212 and model 218.
