Prepare longitudinal member front section - AR62.20-P-1260-05CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

If damaged severely, it is not necessary to cut longitudinal member front section (1) in area (A).

Mark separation line on longitudinal member front section (1) (area A).
Transfer separation line from vehicle (area A).
Separate longitudinal member front section (1) at separation point (area A).

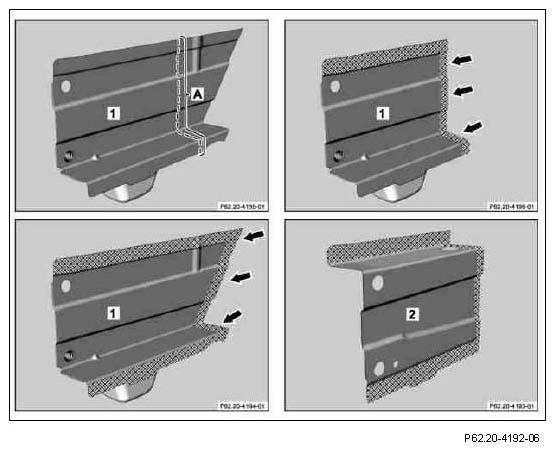

Fig 1: Identifying Longitudinal Member Front Section Separation Points & Mating Surfaces
Courtesy of MERCEDES-BENZ USA
Grind mating surfaces on longitudinal member front section (1) down to bare metal in crosshatched areas.
Grind mating surfaces on longitudinal member front section (1) down to bare metal from rear (arrows).

Grind spot weld flanges down to bare metal on both sides.
Grind mating surfaces on front cover (2) down to bare metal in crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Coat insides of spot weld flange on longitudinal member front section (1) and front cover (2) with zinc dust paint.
Grind mating surfaces on front end bracket (5) down to bare metal in crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Coat insides of spot weld flange on front end bracket (5) with zinc dust paint

Fig 2: Identifying Front End Bracket Mating Surfaces
Courtesy of MERCEDES-BENZ USA
