Install and weld in longitudinal member front section - AR62.20-P-1260-07CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

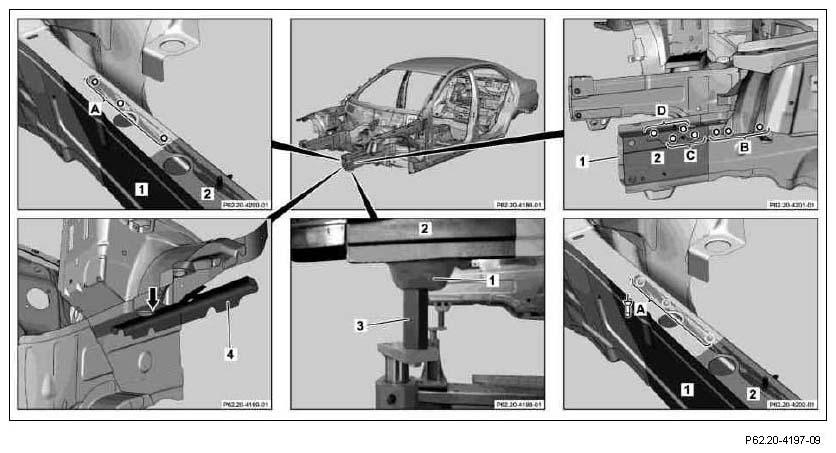

Fig 1: Identifying Longitudinal Member Front Section Components

Courtesy of MERCEDES-BENZ USA

Illustrated on model 204.0

1.1 Install reinforcement bracket (4), fit and fix in place.
Only when replacing reinforcing bracket (4).

Center reinforcing bracket (4) on cutout for through hole (arrow).
1.2 Install longitudinal member front section (1) and front cover (2), fit and fix in place with straightening tool (3).
2.1 Drill Ø 6.7 mm rivet holes in reinforcing bracket (4) (areas A and B).
Only when replacing reinforcing bracket (4).
2.2 Drill Ø 6.7 mm rivet holes in front cover (2) (areas C and D).
3 Remove longitudinal member front section (1), front cover (2) and reinforcing bracket (4).
4 Deburr rivet holes on both sides
5.1 Install reinforcement bracket (4), rivet to front longitudinal member with Ø 6.4 x14 Polygrip flat/round head rivet (areas A and B).
Only when replacing reinforcing bracket (4).
6 Install longitudinal member front section (1), fit and fix in place with straightening tool (3).
7.1 Longitudinal member front section (1) (area J).
If damaged severely, weld longitudinal member front section (1) in area (J).
7.2 Longitudinal member front section (1) (area I).

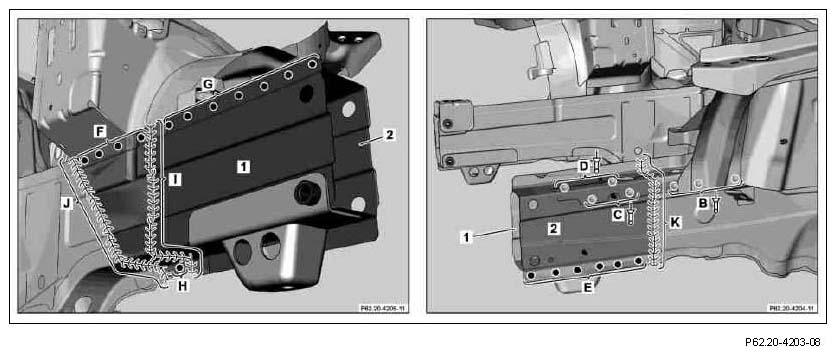

Fig 2: Identifying Longitudinal Member Front Section Welds & Rivets
Courtesy of MERCEDES-BENZ USA
7.1 Longitudinal member front section (1) (area J).
If damaged severely, weld longitudinal member front section (1) in area (J).
7.2 Longitudinal member front section (1) (area I).
8 Clean inner area of weld seam with coat with zinc dust paint.
9 Install front cover (2), fit and fix in place.
10 Rivet front cover (2) to reinforcement bracket (4) with Ø 6.4 x14 Polygrip flat/round head rivet (areas C and D).
11 Longitudinal member front section (1) and front cover (2) (areas E, F, G and H).
Resistance spot weld longitudinal member front section (1) in areas (F and H) only in the event of severe damage.
12 Front cover (2) (area K).
13 Clean weld joints.
14 Install front end bracket (5), fit and fix in place with straightening tool.
15 Front end bracket (2) (areas L, M and N).

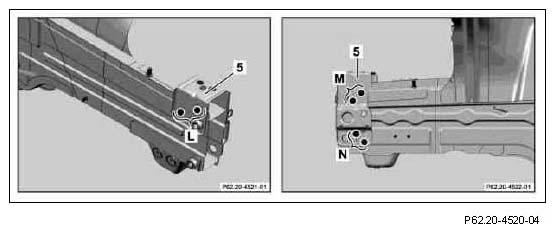

Fig 3: Identifying Front End Bracket Spot Welds (Areas L, M And N)
