Connect STAR DIAGNOSIS and read out fault memory - AD00.00-P-2000-04A
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

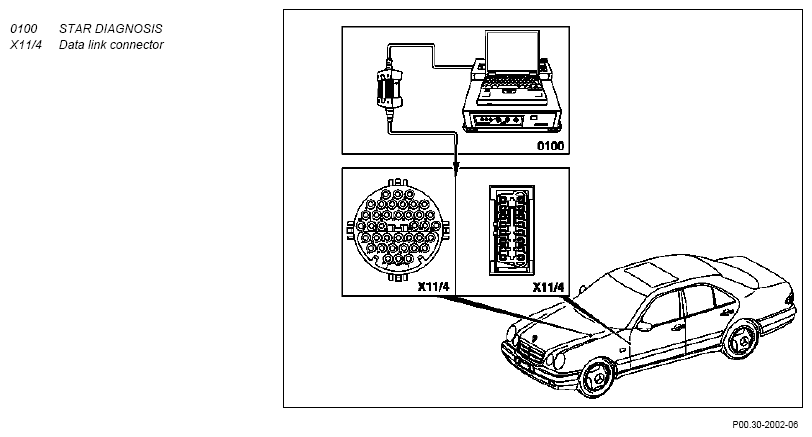

Illustrated on model 210
- Connect Star Diagnosis (0100).
- Switch on ignition.
- Start the Diagnosis Assistance System.
- Select the model series in the menu.
The work procedures in the diagnosis program are menu-assisted.
- Disconnect STAR DIAGNOSIS (0100).
Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
