Remove/install soft top compartment lid - AR77.37-P-4175QA
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Mercedes-Benz CLK63, 2008 Mercedes-Benz CLK63, 2007 Mercedes-Benz CLK63, 2007 Mercedes-Benz CLK550, and 2007 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.4
| Remove/install | |||
|---|---|---|---|
| Risk of injury when performing check and repair work in area of roll bar | Before working in the area of the roll bar, pull out the rear head restraints by hand. Keep body parts out of the area where the roll bar extends. |
AS91.00-Z-0003-01QA | |
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when components are in motion. | AS00.00-Z-0009-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Open trunk lid | ||
| 2 | Remove left side wall lining in trunk | AR68.30-P-4601QA | |

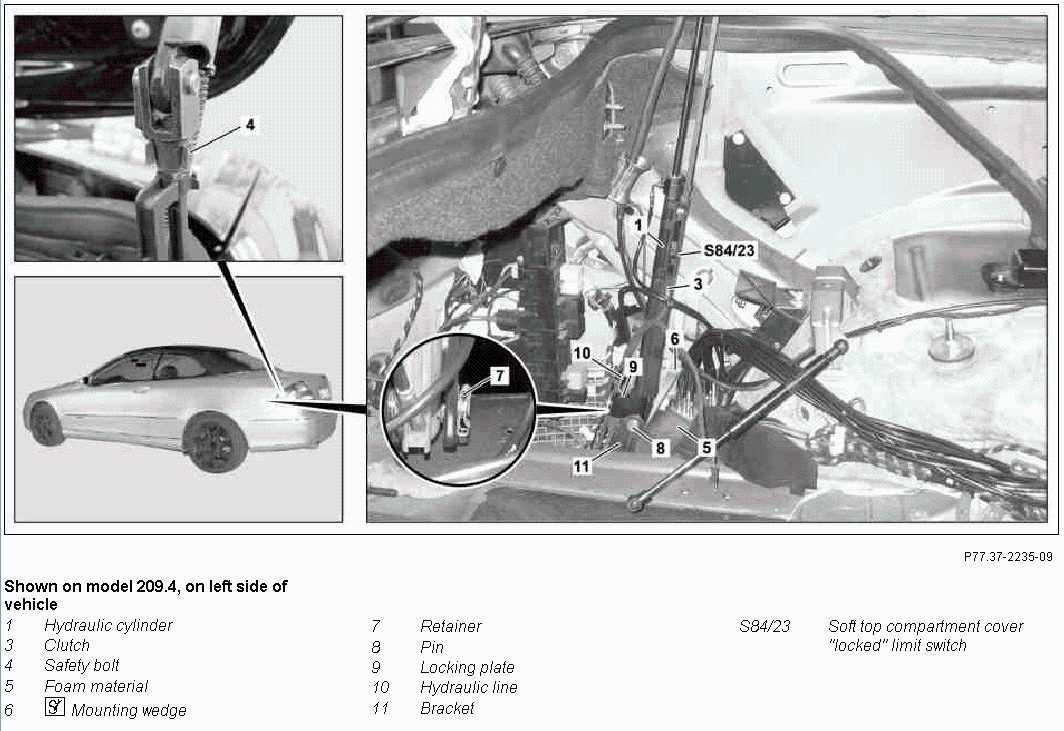

| 3 | Disconnect connector (3) from soft top compartment lid limit switch (2) | ||
| 4 | Unclip retaining bolts (4) and pull out | ||
| 5 | Press foam rubber (5) of soft top compartment lid hydraulic cylinder (1) to side with mounting wedge. | Figure | |
| 6 | Remove retainer (7) from pin (8) | ||
| 7 | Pull out bolt (8) and remove hydraulic cylinder (1) from bracket (11). | ||
| 8 | Unclip soft top compartment lid locked limit switch (S84/23) from hydraulic cylinder (1) | ||

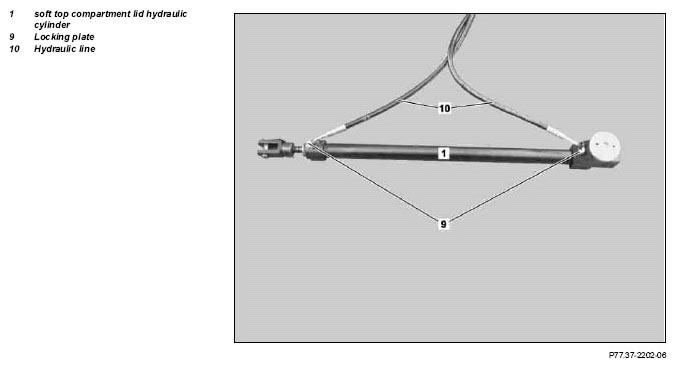

| 9 | Remove locking plate (9) from hydraulic lines (10) | On left side of vehicle. | |
| 10 | Pull hydraulic lines (10) out of hydraulic cylinder (1) | ||
| 11 | Remove all sealing rings from hydraulic lines (10) | ||
| 12 | Slide new sealing rings onto hydraulic lines (10) | ||
| Hydraulic fluids (Sheet 343.0) | BB00.40-P-0343-00A | ||
| 13 | Install in the reverse order | ||
| 14 | Check oil level of hydraulic line, correct if necessary | ||
| Hydraulic fluids (Specification 343.0) | BB00.40-P-0343-00A | ||
| *BA77.37-P-1003-01C | |||
| Fig 4 | |||
SOFT TOP -HYDRAULICS
| Number | Designation | Model 209.4 | ||
|---|---|---|---|---|
| BA77.37-P-1003-01C | Oil filler screw to hydraulic unit reservoir | Nm | 2 | |
