Remove/install light switch module - AR54.25-P-3270P
MODEL 203, 209

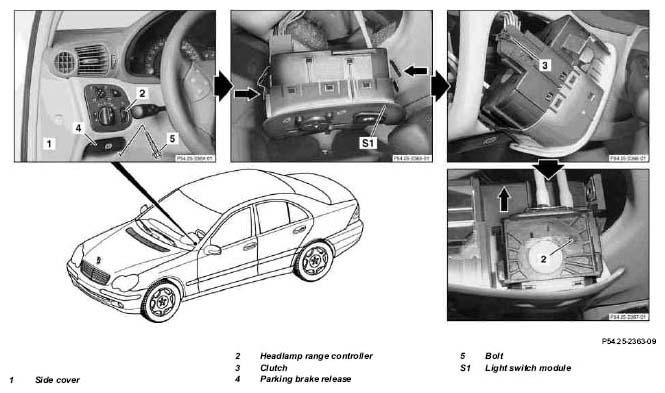

Illustrated on model 203.0
MODIFICATION NOTES
| 24.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
| 1 | Remove side cover (1) | ||
| 2 | Remove screw (5) | ||
| 3 | Unclip and remove lamp switch module (S1) | ||
| 4 | Release connector (3) and disconnect | ||
| 5 | Unlock headlamp range adjuster (2) and detach from lamp switch module (S1) (arrow) | Except code (612b) xenon headlamp unit | |
| 6 | Install in the reverse order |
