Remove/install inner fender in front fender - AR88.10-P-1300P
MODEL 203, 209

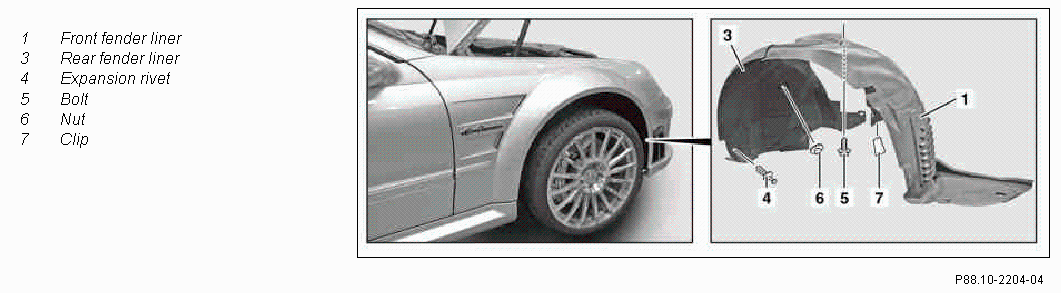

Shown on model 203.0
Shown on model 209 with code P98 Black Series
| Remove/Install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove rear wheel | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050Z | ||
| 2 | Remove clip (7) | Vehicles with code P98 Black Series | |

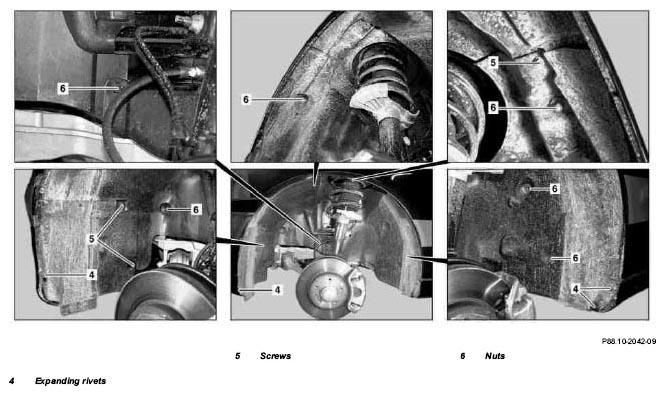

| 3 | Remove expansion rivet (4) | ||
| 4 | Remove bolts (5) | ||
| 5 | Remove nuts (6) | ||
| 6.1 | Remove front, center, and rear fender liners (1, 2, 3). | Vehicles without code P98 Black Series | |
| 6.2 | Remove front and rear fender liners (1, 3) | Vehicles with code P98 Black Series | |
| 7 | Install in the reverse order |
