Remove/install side paneling in rear - AR68.30-P-4780QA

MODEL 209.4

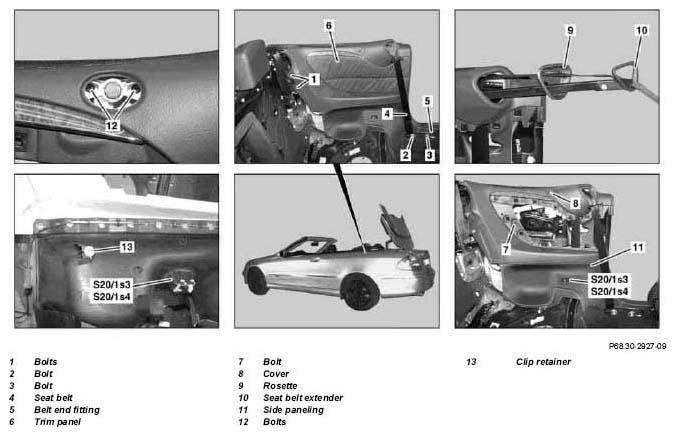

Fig 1: Identifying Rear Side Paneling Components - Model 209.4

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

22.1.04

Disconnect/connect/remove ground line from battery

	Remove/Install
1	Remove rear seat and rear backrest		AR91.12-P-1700QA
2	Remove bolts (1)
3.1	Unscrew bolt (2)	Except USA version code 494a passenger side
		Bolt on belt end fitting	*BA91.40-P-1001-01A
3.2	Remove belt tension sensor (B48/3)	With USA version code 494a passenger side	AR91.40-P-0630Q
4	Loosen bolt (3)	Bolt on belt end fitting	*BA91.40-P-1001-01A
5.1	Lift belt end fitting (5) and move out seat belt (4)	Except USA version code 494a passenger side
		Installation:  Ensure that seat belt (4) is installed properly.
6	Unclip trim panel (6)	Long wedge	Fig 2
7	Remove bolt (7)
8	Unclip cover (8) and unscrew bolts (12) below
9	Pull out seat belt extender (10) and unclip rosette (9)
10	Move seat belt (4) through seat belt extender (10) and rosette (9).
11	Remove side paneling (11).	Installation:  Check clip retainers (13) in side paneling (11), replace if necessary.
12	Unplug electrical connector at left rear power window switch (S20/1s3), right rear power window switch (S20/1s4)
13	Move seat belt (4) through side paneling (11) with rosette (9).	Installation:  Ensure that seat belt (4) is installed properly.
14	Install in the reverse order
15	Carry out seat belt function check

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 209.4
BA91.40-P-1001-01A	Belt end fitting bolt	Nm	30

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
