Remove/install rear mounting wall - AR68.74-P-1000QA

MODEL 209.4

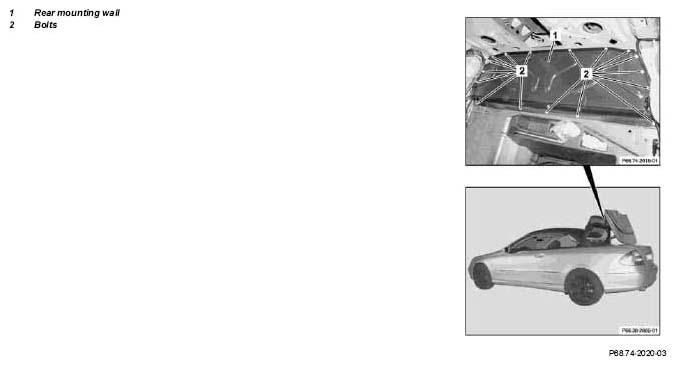

Fig 1: Identifying Rear Mounting Wall And Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever  extremities.	No parts of the body or limbs should be within the operating range of the mechanism when components are in motion.	AS00.00-Z-0009-01A
	Risk of injury when performing check and repair work in area of roll bar	Before working in the area of the roll bar, pull out the rear head restraints by hand. Keep body parts out of the area where the roll bar extends.	AS91.00-Z-0003-01QA
1	Open soft top compartment cover
2	Cover vehicle in rear area	To prevent scratching the paint during assembly work.
3	Remove retractable trunk partition		AR68.50-P-3000QA
4	Remove trunk paneling in area of assembly rear wall		AR68.30-P-4600QA
5	Unscrew bolt (2)	Installation:  Before tightening, position all bolts (2).
		Bolt, rear mounting wall to body	*BA68.74-P-1001-01A
		Torx bit set	Fig 2
6	Remove assembly rear wall (1) through soft top compartment upward	When removing assembly rear wall, ensure that paint is not damaged by scratching.
7	Install in the reverse order

PARTITION WALL

Number	Designation		Model 209.4
BA68.74-P-1001-01A	Bolt, rear mounting wall to body	Nm	8 (± 1)

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)

Courtesy of MERCEDES-BENZ USA
