CLK55 AMG Coupe, CLK320 Coupe & CLK500 Coupe
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2004 Mercedes-Benz CLK55, 2004 Mercedes-Benz CLK500, 2004 Mercedes-Benz CLK320, 2004 Mercedes-Benz C320, and 2004 Mercedes-Benz C32. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For model to chassis identification, see MODEL IDENTIFICATION - 209 CHASSIS
table under MODEL IDENTIFICATION.
To adjust hood gap, see ADJUSTING HOOD GAP (CLK55 AMG COUPE, CLK320 COUPE & CLK500 COUPE) table.

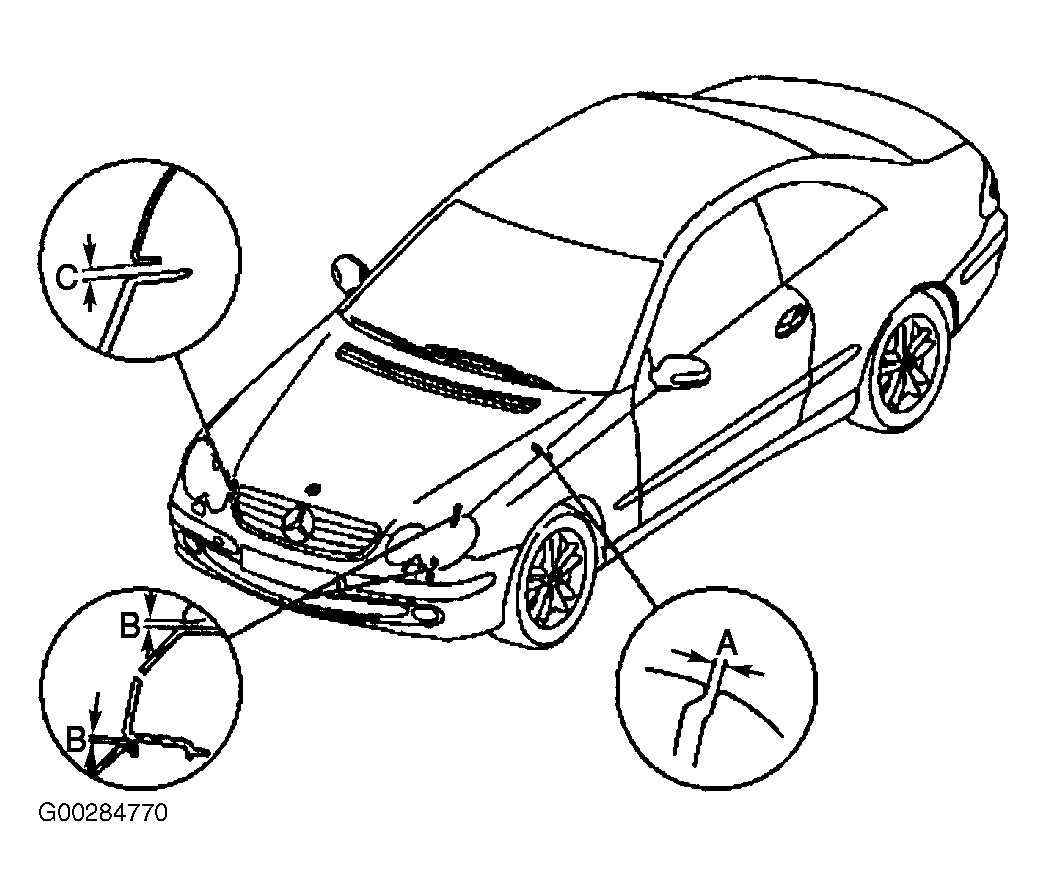

ADJUSTING HOOD GAP (CLK55 AMG COUPE, CLK320 COUPE & CLK500 COUPE)
| Gap Dimension | Hood Gap | |||
|---|---|---|---|---|
| Hood-To-Fender | ||||
| Dimension "A" (1) | 3-4 mm | |||
| Hood-To-Bumper | ||||
| Dimension "B" (1) | 3-4 mm | |||
| Hood-To-Headlamp | ||||
| Dimension "C" (1) | 3.5-4.5 mm | |||
|
||||
